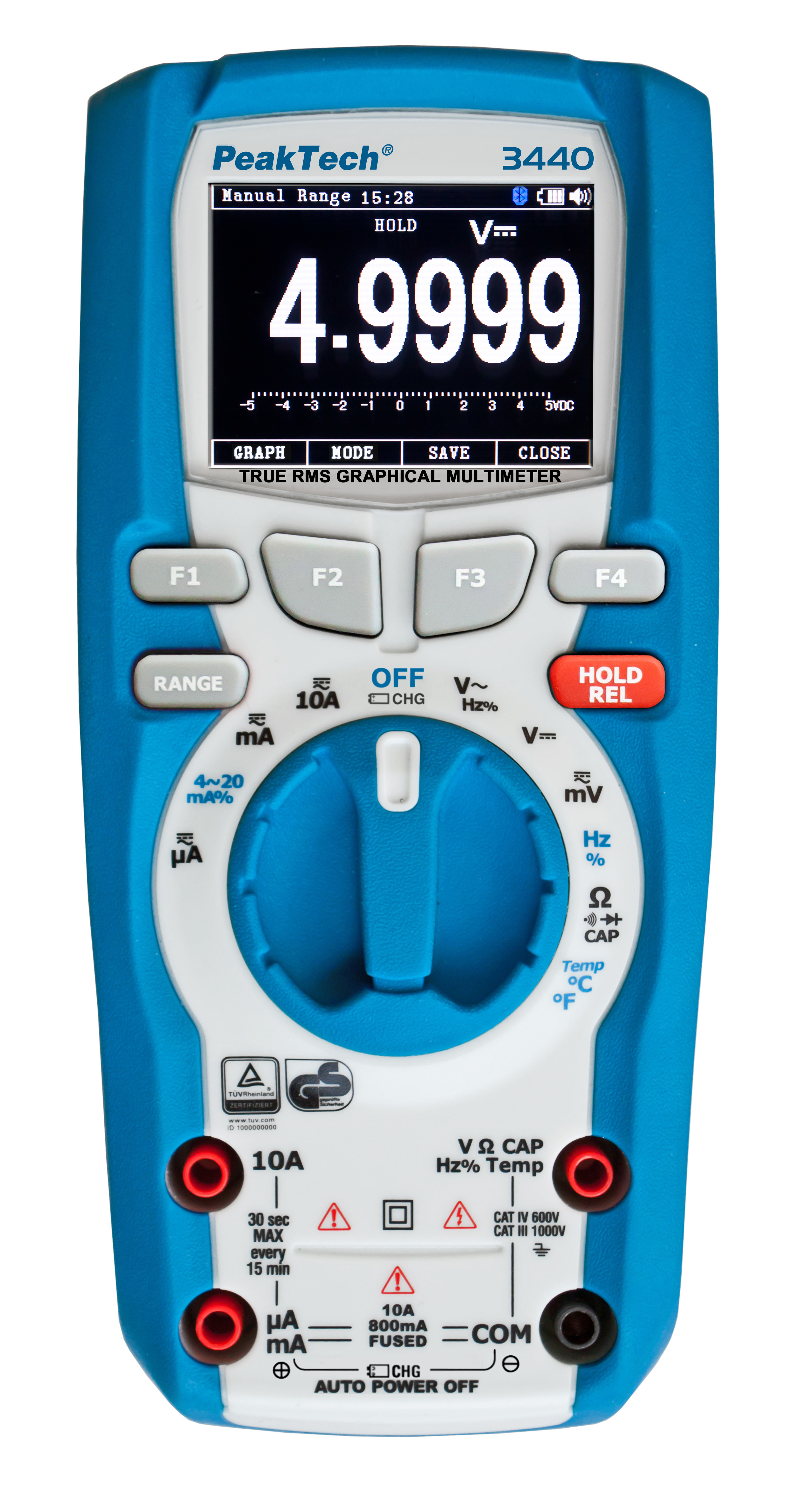

«PeakTech® P 3440» True RMS graphic multimeter 50,000 counts

€199.00*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 3440

EAN: 4250569403064

Downloads

Product information "«PeakTech® P 3440» True RMS graphic multimeter 50,000 counts"

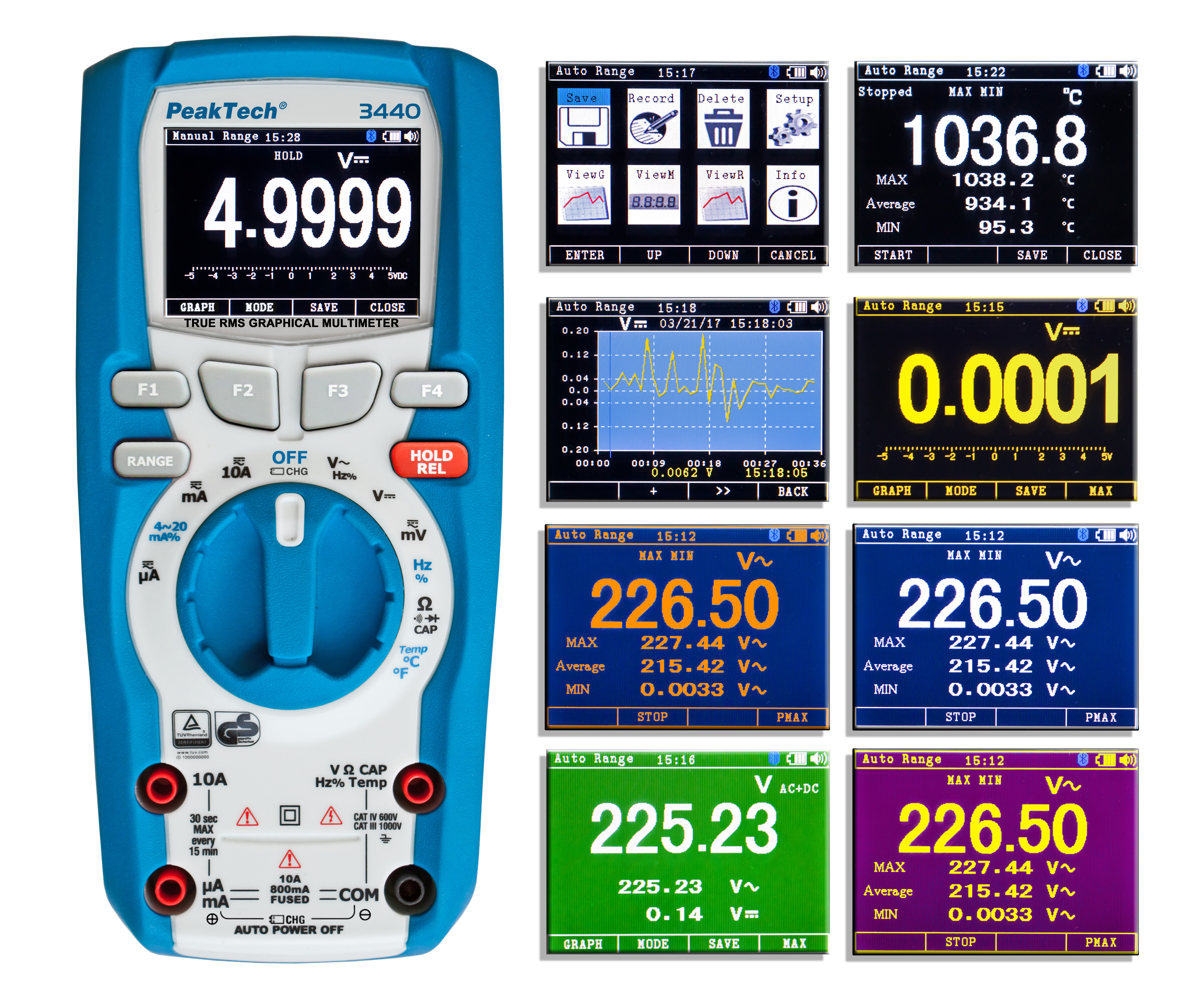

The PeakTech 3440 is an innovative graphic multimeter with a 50,000-digit color TFT display for precise measurements with a high DC basic accuracy of 0.05%. The internal data logger enables the recording of measured values, which can be recorded over a period of several hours and the transfer to a Windows PC at a later time is ensured. Internally stored measured value recordings can also be accessed and graphically displayed on the multimeter itself or on the PC. Via Bluetooth, the measured values can also be displayed live via app for Android and iOS devices, recorded in a table and e.g. send by email for further processing. This multimeter has a variety of measurement functions for direct and alternating voltage measurements (incl.ACV + DCV), direct and alternating current measurements, resistance, capacitance, frequency or temperature, whereby alternating voltage and alternating current are recorded as True RMS values. Due to the extensive measurement functions and the intuitive operation, this device is ideally suited for every electronics engineer, technician and engineer who attach great importance to a precise, indestructible and technically powerful multimeter.

Software: DMM Tool compatible - download in the service area

Basic Accuracy DC:	+/- 0,05%
Battery:	Li-Po 1200 mAh
Bluetooth:	■
Capacitance max.:	10 mF
Digital counts:	50.000
Display Type:	Color-TFT
Memory (internal):	■
OHM resolution min.:	0,01 Ω
Over voltage category:	CAT III 1000 V, CAT IV 600 V
Range selection:	Auto
Screen size (TFT):	5,6 cm (2,2")
True RMS:	■
TÜV/GS:	■
V AC resolution min.:	0,01 mV
V DC Resolution min.:	0,01 mV
V DC max.:	1000V
A AC max.:	10A
Hz max.:	10 MHz
OHM max.:	50 MΩ
Temp. max.:	1350 °C
Temp. min.:	-100 °C
mA DC max.:	500mA
mV DC max.:	500 mV
µA DC max.:	5000 µA
V AC max.:	1000V
mV AC max.:	500 mV
A DC max.:	10A
mA AC max.:	500 mA
µA AC max.:	5000 µA

True RMS voltage measurements up to 1000 V AC / DC
True RMS current measurements up to 10 A AC / DC
Color TFT display with 50,000 digital digits
Bluetooth interface for app and PC software

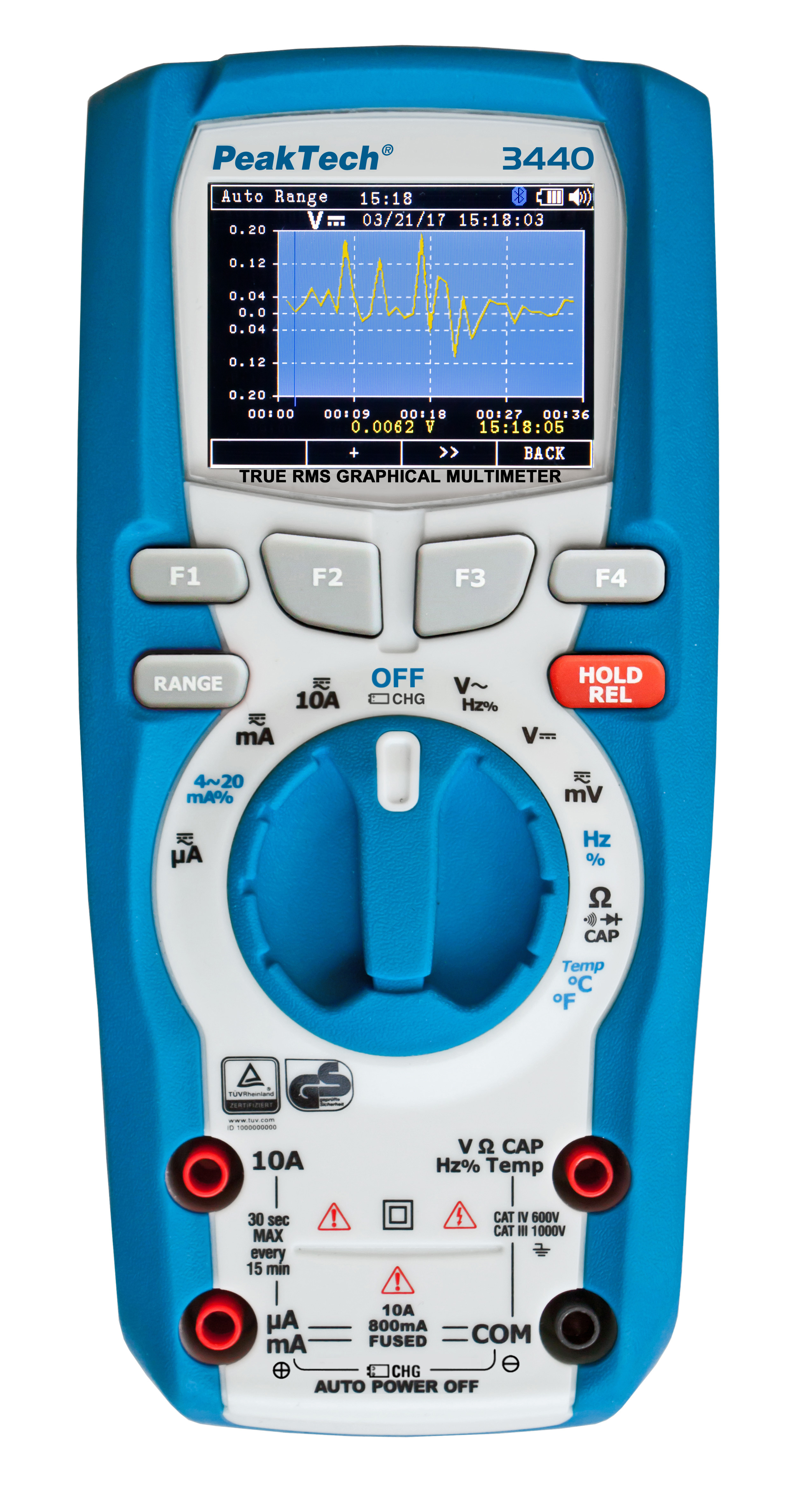

Internal data logger with curve display
Low Z, AC + DC and 4 ~ 20 mA% measurement functions
Maximum value, minimum value function and average function
Safety: TÜV / GS, EN 61010-1, CAT III 1000 V / CAT IV 600V
Accessories: charger, temperature sensor, carrying case, test leads, BT adapter, software and manual

Optional:

«PeakTech® P 3440 BC» charger and spare battery for PeakTech 3440

This set of charger and lithium-polymer battery of the latest generation expands our graphic multimeter PeakTech 3440 with an additional power supply for service, maintenance and repair work in the field. Lithium-polymer batteries combine a long service life with a very low self-discharge and memory effect, thus ensuring a long service life and storage time without major discharges occurring.

€32.90*

Zubehör / Accessories:

«PeakTech® P 8200» Measuring Accessories Set

This extensive collection of test accessories for the electronics area provides the best suitable measuring adapter for the desired application for each digital multimeter. In addition, these high quality clips and cables are all manufactured to the latest safety standards and provides a high safety in every application for the user. For the material, a flexible plastic was chosen, which can also withstand the hardest kinds of usage.

€43.90*

«PeakTech® P 7000» Tapping clamps for Digital Multimeter up to 10 A

These measuring accessories with 4 mm sockets can be connected to almost all measuring devices. Thanks to its hook-shaped alligator clips, it is possible to carry out measurements even in hard-to-reach points on a circuit. A maximum of safety is achieved by the double insulation of the lines and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€15.90*

«PeakTech® MKS-10» Measuring tip set with 1 mm test tips

This measuring tip set for all standard measuring lines with 4 mm safety sockets was developed in order to be able to measure even small components precisely. This measuring tip set also includes the matching alligator clips, that it is possible to fix the measuring tips to the component to be measured. When using the measuring tips without the alligator clips, an overvoltage category of CAT I 1000 V is guaranteed. By using the alligator clips, it is possible to use the overvoltage category CAT III.

€10.90*

«PeakTech® P 7005» Test Leads for Digital Multimeter with extension

This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. With the extension adapters, it is possible to connect the test leads to other test leads in order to carry out measurements over long distances. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*

«PeakTech® P 7015» Alligator clamps for Digital Multimeter

The alligator clips enable safe measurements even on bare or exposed cables. With their 4 mm sockets, they can be used for almost any multimeter and measuring device. A maximum of safety is achieved by the protection against against accidental contact with conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*

«PeakTech® TKS-4» Test Leads with 4 mm spring-contact probe tip

This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The 4mm diameter spring contact test probes of the TKS-4 cables fit exactly into power sockets and are provided with removable protective caps. In CAT I / CAT II measurement environments, these can be accepted for a probe tip length of 18mm, in CAT III / CAT IV measurement environments they must remain attached for better user safety and provide a probe tip length of 4mm.

€7.90*

«PeakTech® P 7010» Tapping clamps for Digital Multimeter; 5 A

This measuring accessory with 4 mm sockets can be connected to almost all measuring devices and power supplies. Thanks to the fine alligator clips, even measurements on small components or at hard-to-reach points on circuits are possible. A maximum of security is achieved by the double insulation of the wires and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€7.90*

«PeakTech® TKS-8» Test Leads with 2 mm probe tip and sleeves

This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The 2mm diameter test probes of the TKS-8 cables are provided with removable protective caps. In CAT I / CAT II measurement environments, these can be accepted for a probe tip length of 18mm, in CAT III / CAT IV measurement environments they must remain attached for better user safety and provide a probe tip length of 4mm.

€7.90*

«PeakTech® P 7020» Test Leads for Digital Multimeter

This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. A maximum of safety is achieved by the double insulation of the wires and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€5.90*

«PeakTech® P 7025» Test Leads for Digital Multimeter with coupling

These test leads with 4 mm sockets have a coupling, which makes it possible to connect other test leads to them. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€5.90*

«PeakTech® TKS-2» Test Leads with 2 mm probe tip

This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The test probes length of the TKS-2 cables are limited to 2mm for the best possible user safety when used in CAT III and CAT IV environments.

€4.90*

Ersatzsicherungen / Fuses:

«PeakTech® P 7530» microfuse ~ 10 A / 1000 V ~ 10.3 x 38 mm ~ super fast acting (FF)

Modern device fuses with ceramic bodies offer a significantly higher level of protection against damage to the measuring device when triggered than conventional glass fuses. Due to the larger design, a voltage flashover between the internal fuse holders of modern measuring devices can be effectively prevented even with high test current voltages. Triggered fuses may only be replaced with replacement fuses of the same design and specifications in order to guarantee the safety of the device and thus also the safety of the user in future measurements.

€3.29*

«PeakTech® P 7606» fuse 0.8 A / 1000 V, 6.3 x 32 mm super fast acting (FF)

€2.19*
