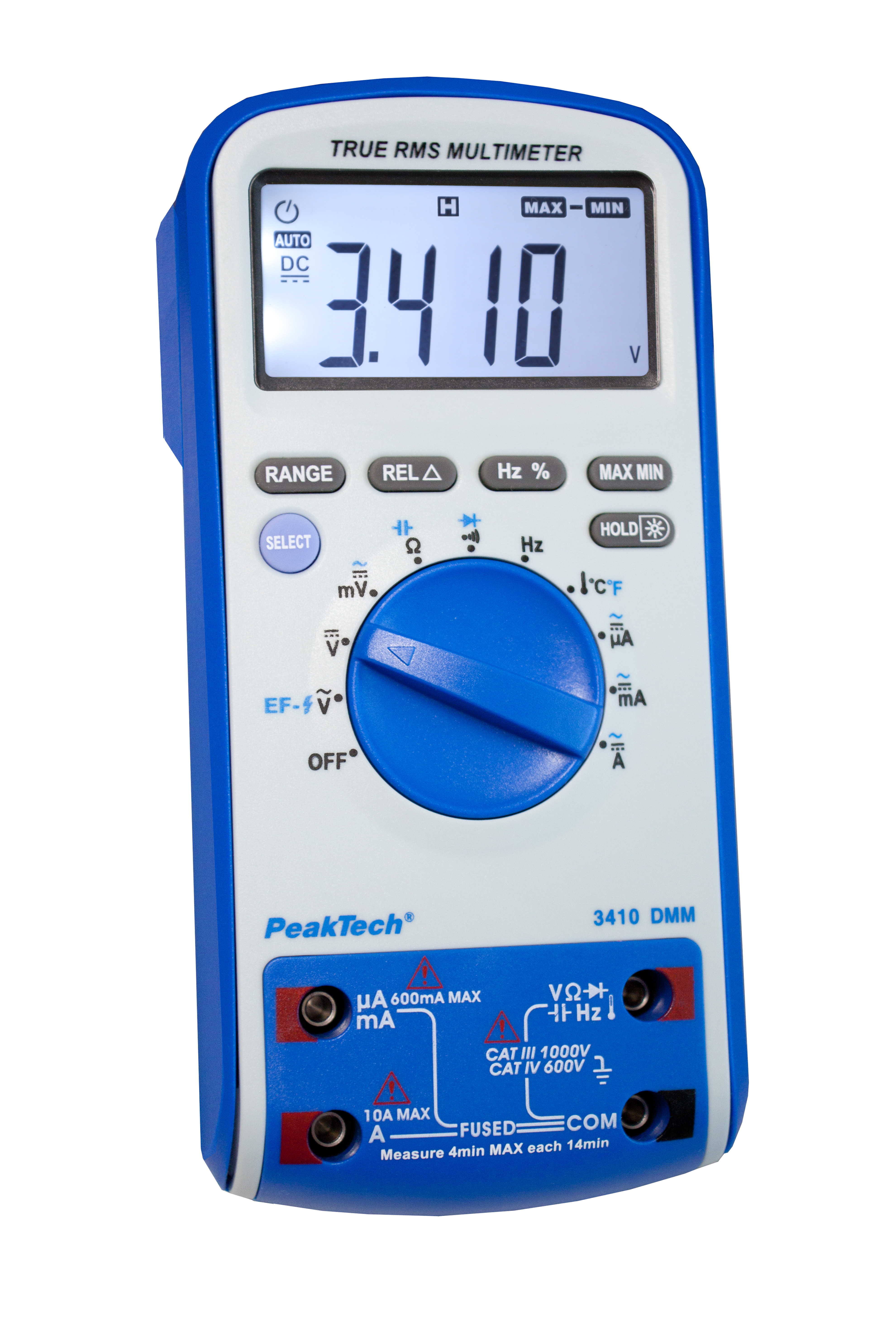

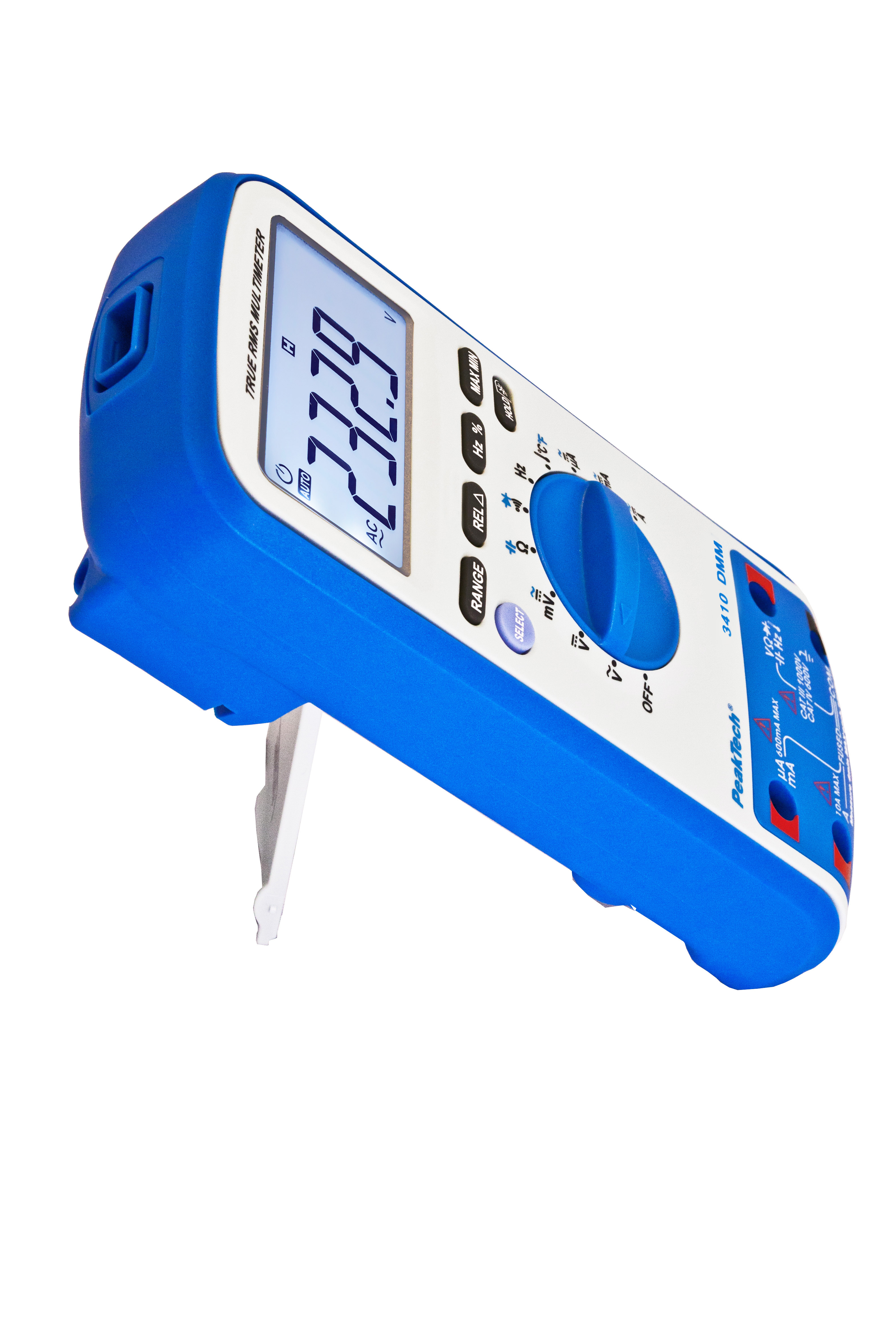

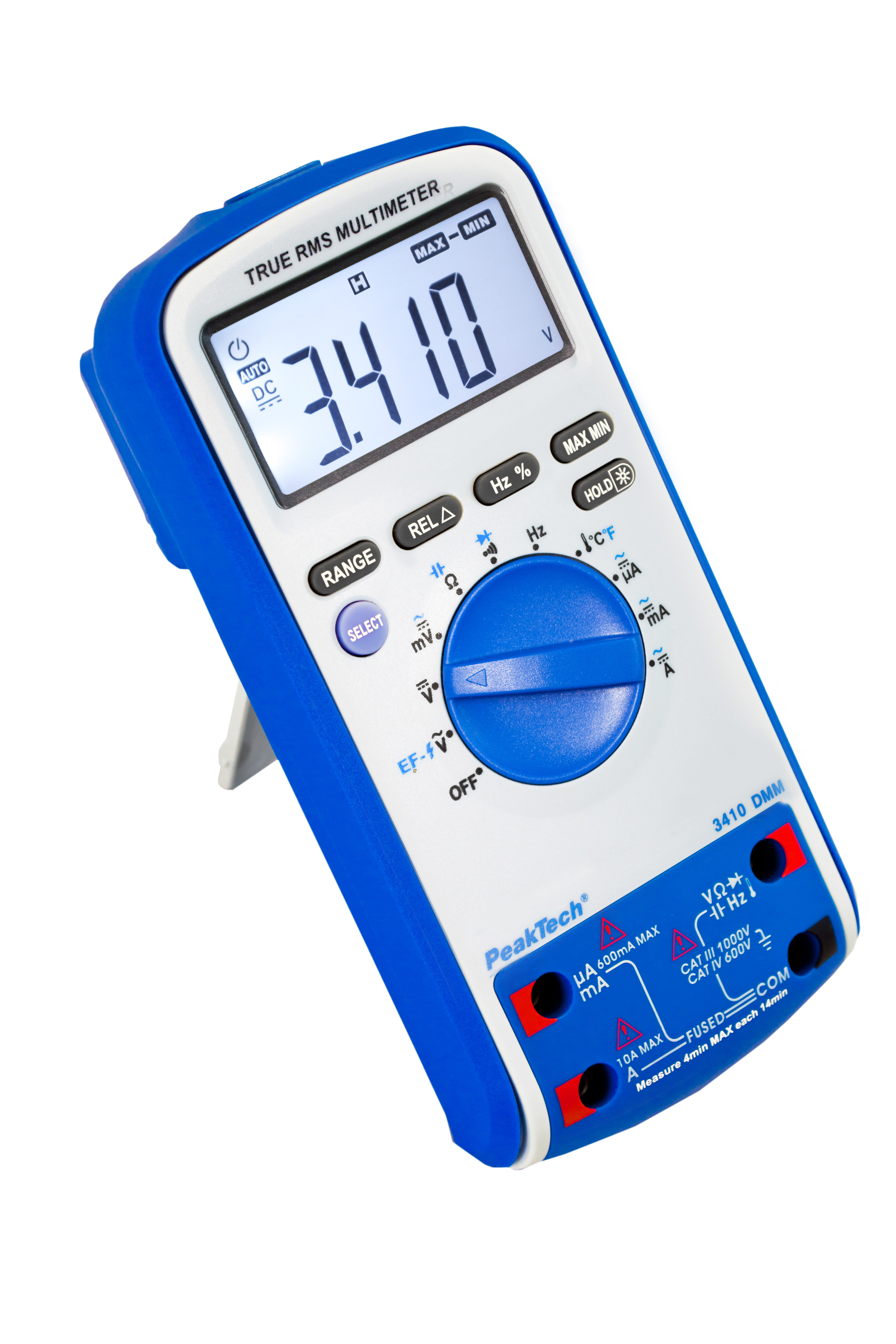

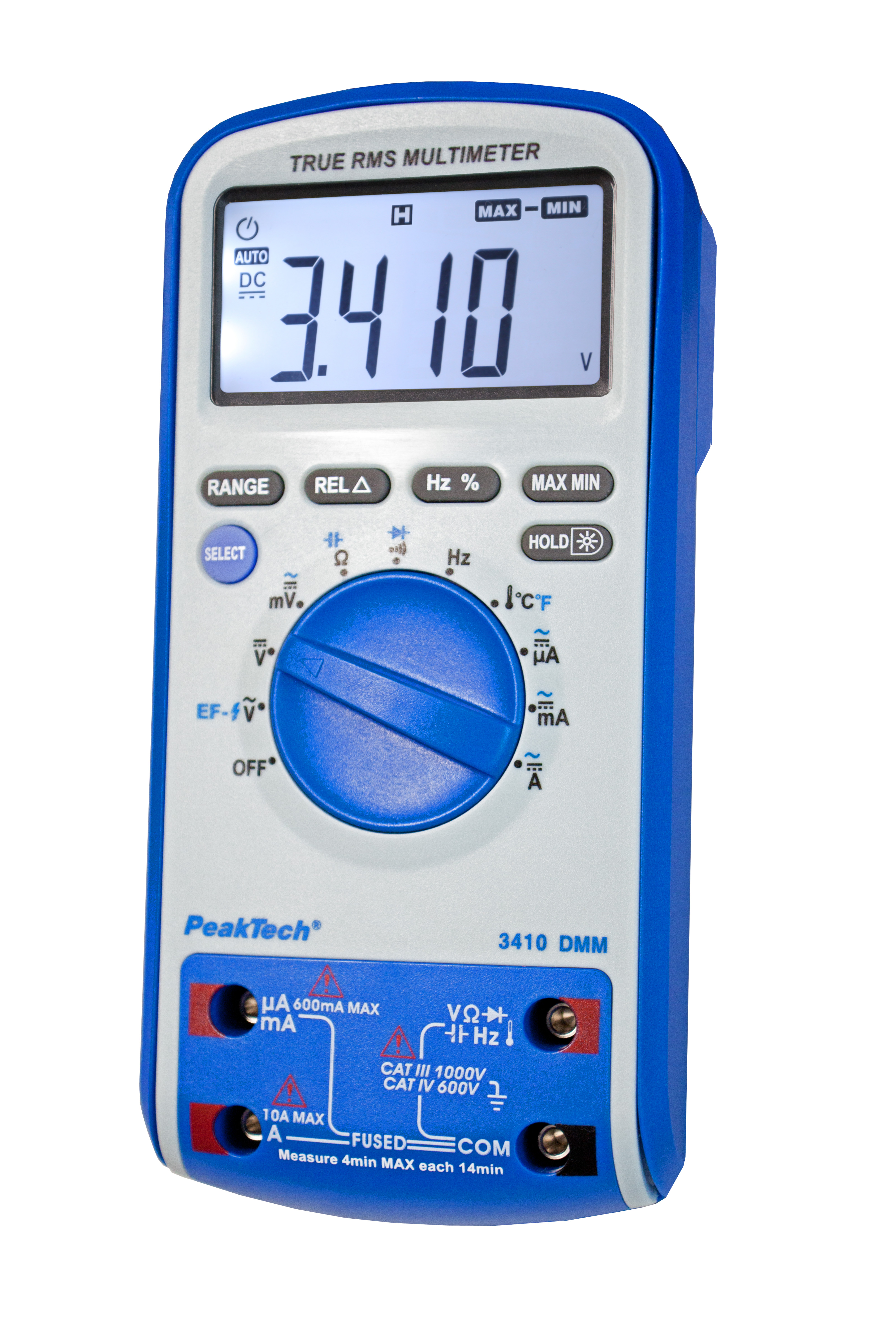

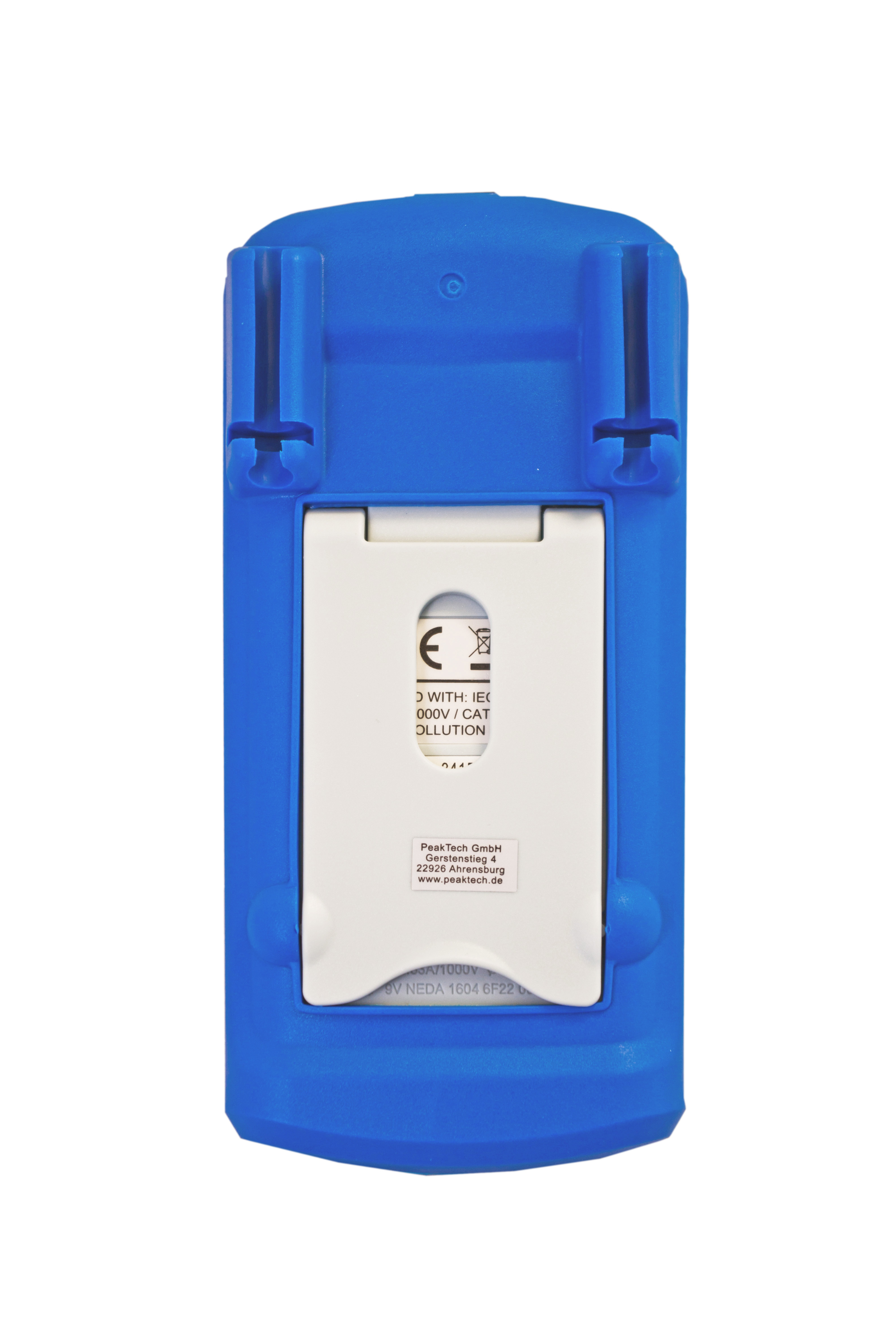

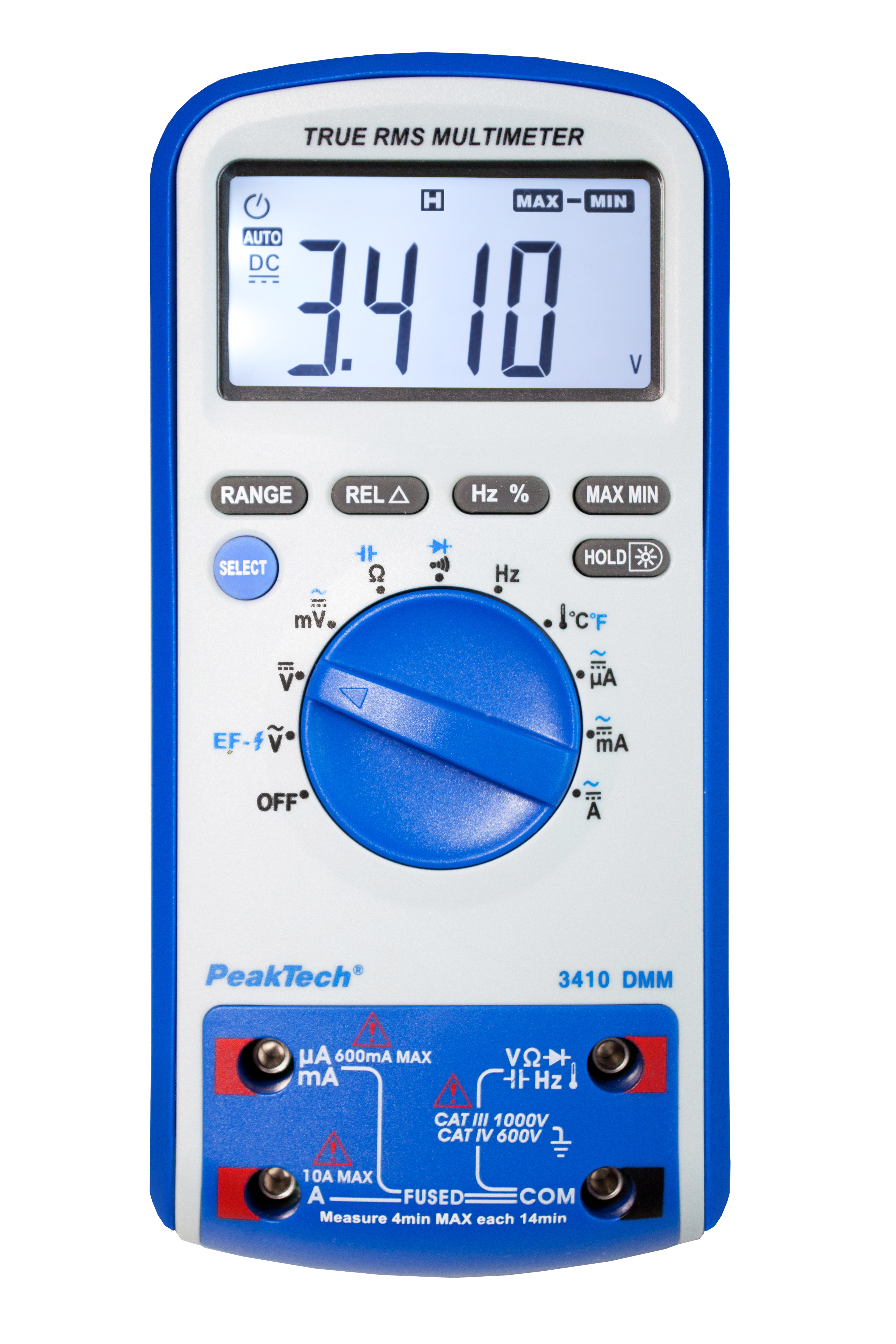

«PeakTech® P 3410» Digital multimeter, 6,000 counts with TrueRMS

€54.90*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 3410

EAN: 4250569400902

Downloads

Product information "«PeakTech® P 3410» Digital multimeter, 6,000 counts with TrueRMS"

The PeakTech 3410 is a handy and safe multimeter. It offers measurement functions for direct and alternating voltage, direct and alternating current measurement, resistance and many other measurement functions. The AC voltage and current measurement are recorded by the integrated real effective value (TrueRMS) function. This multimeter is an all-rounder, which is used in almost every area of electrical engineering.

Basic Accuracy DC:	+/- 0,5%
Battery:	9V Block
Capacitance max.:	6 mF
Digital counts:	6.000
Display Type:	LCD
NCV:	■
Over voltage category:	CAT III 1000 V, CAT IV 600 V
Range selection:	Auto
True RMS:	■
V DC max.:	1000V
A AC max.:	20 A
Hz max.:	1000 kHz
OHM max.:	60 MΩ
Temp. max.:	1000 °C
Temp. min.:	-55 °C
mA DC max.:	600mA
mV DC max.:	600 mV
µA DC max.:	6000 µA
V AC max.:	750 V
mV AC max.:	600 mV
A DC max.:	20A
mA AC max.:	600 mA
µA AC max.:	6000 µA

3 5/6 digit backlit LCD display
True RMS measurement
Temperature measurement up to 1000 ° C
Safety: EN 61010-1; CAT III 1000 V / CAT IV 600V

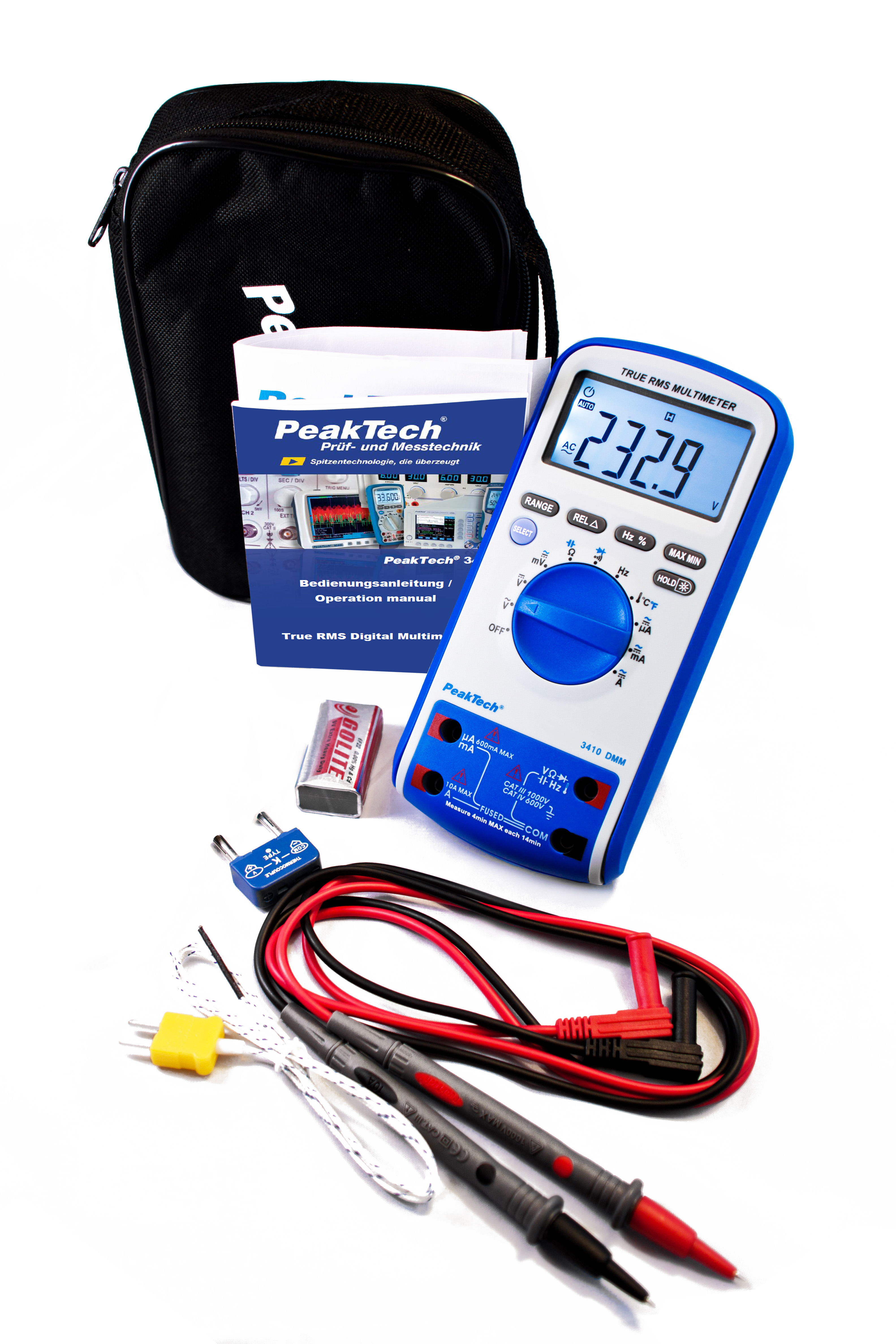

Accessories: bag, type K temperature wire sensor, temperature adapter, test leads, battery and manual

Zubehör / Accessories:

«PeakTech® MKS-10» Measuring tip set with 1 mm test tips

This measuring tip set for all standard measuring lines with 4 mm safety sockets was developed in order to be able to measure even small components precisely. This measuring tip set also includes the matching alligator clips, that it is possible to fix the measuring tips to the component to be measured. When using the measuring tips without the alligator clips, an overvoltage category of CAT I 1000 V is guaranteed. By using the alligator clips, it is possible to use the overvoltage category CAT III.

€10.90*

«PeakTech® P 7000» Tapping clamps for Digital Multimeter up to 10 A

These measuring accessories with 4 mm sockets can be connected to almost all measuring devices. Thanks to its hook-shaped alligator clips, it is possible to carry out measurements even in hard-to-reach points on a circuit. A maximum of safety is achieved by the double insulation of the lines and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€15.90*

«PeakTech® P 7005» Test Leads for Digital Multimeter with extension

This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. With the extension adapters, it is possible to connect the test leads to other test leads in order to carry out measurements over long distances. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*

«PeakTech® P 7010» Tapping clamps for Digital Multimeter; 5 A

This measuring accessory with 4 mm sockets can be connected to almost all measuring devices and power supplies. Thanks to the fine alligator clips, even measurements on small components or at hard-to-reach points on circuits are possible. A maximum of security is achieved by the double insulation of the wires and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€7.90*

«PeakTech® P 7015» Alligator clamps for Digital Multimeter

The alligator clips enable safe measurements even on bare or exposed cables. With their 4 mm sockets, they can be used for almost any multimeter and measuring device. A maximum of safety is achieved by the protection against against accidental contact with conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*

«PeakTech® P 7020» Test Leads for Digital Multimeter

This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. A maximum of safety is achieved by the double insulation of the wires and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€5.90*

«PeakTech® P 7025» Test Leads for Digital Multimeter with coupling

These test leads with 4 mm sockets have a coupling, which makes it possible to connect other test leads to them. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€5.90*

«PeakTech® P 8200» Measuring Accessories Set

This extensive collection of test accessories for the electronics area provides the best suitable measuring adapter for the desired application for each digital multimeter. In addition, these high quality clips and cables are all manufactured to the latest safety standards and provides a high safety in every application for the user. For the material, a flexible plastic was chosen, which can also withstand the hardest kinds of usage.

€43.90*

«PeakTech® TKS-2» Test Leads with 2 mm probe tip

This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The test probes length of the TKS-2 cables are limited to 2mm for the best possible user safety when used in CAT III and CAT IV environments.

€4.90*

«PeakTech® TKS-4» Test Leads with 4 mm spring-contact probe tip

This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The 4mm diameter spring contact test probes of the TKS-4 cables fit exactly into power sockets and are provided with removable protective caps. In CAT I / CAT II measurement environments, these can be accepted for a probe tip length of 18mm, in CAT III / CAT IV measurement environments they must remain attached for better user safety and provide a probe tip length of 4mm.

€7.90*

«PeakTech® TKS-8» Test Leads with 2 mm probe tip and sleeves

This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The 2mm diameter test probes of the TKS-8 cables are provided with removable protective caps. In CAT I / CAT II measurement environments, these can be accepted for a probe tip length of 18mm, in CAT III / CAT IV measurement environments they must remain attached for better user safety and provide a probe tip length of 4mm.

€7.90*

Ersatzsicherungen / Fuses:

«PeakTech® P 7520» microfuse ~ 630 mA / 1000 V ~ 10.3 x 38 mm ~ super fast acting (FF)

This modern device protection fuse with ceramic body offers a much higher protection against damage to the measuring device when triggered than conventional glass fuses. Due to the larger design, a voltage flashover between the internal fuse holders of modern measuring devices can be effectively prevented, even with high test current voltages. Triggered fuses may only be replaced with replacement fuses of the same design and specifications in order to guarantee the safety of the device and thus also the safety of the user for future measurements.

€3.29*

«PeakTech® P 7530» microfuse ~ 10 A / 1000 V ~ 10.3 x 38 mm ~ super fast acting (FF)

Modern device fuses with ceramic bodies offer a significantly higher level of protection against damage to the measuring device when triggered than conventional glass fuses. Due to the larger design, a voltage flashover between the internal fuse holders of modern measuring devices can be effectively prevented even with high test current voltages. Triggered fuses may only be replaced with replacement fuses of the same design and specifications in order to guarantee the safety of the device and thus also the safety of the user in future measurements.

€3.29*
