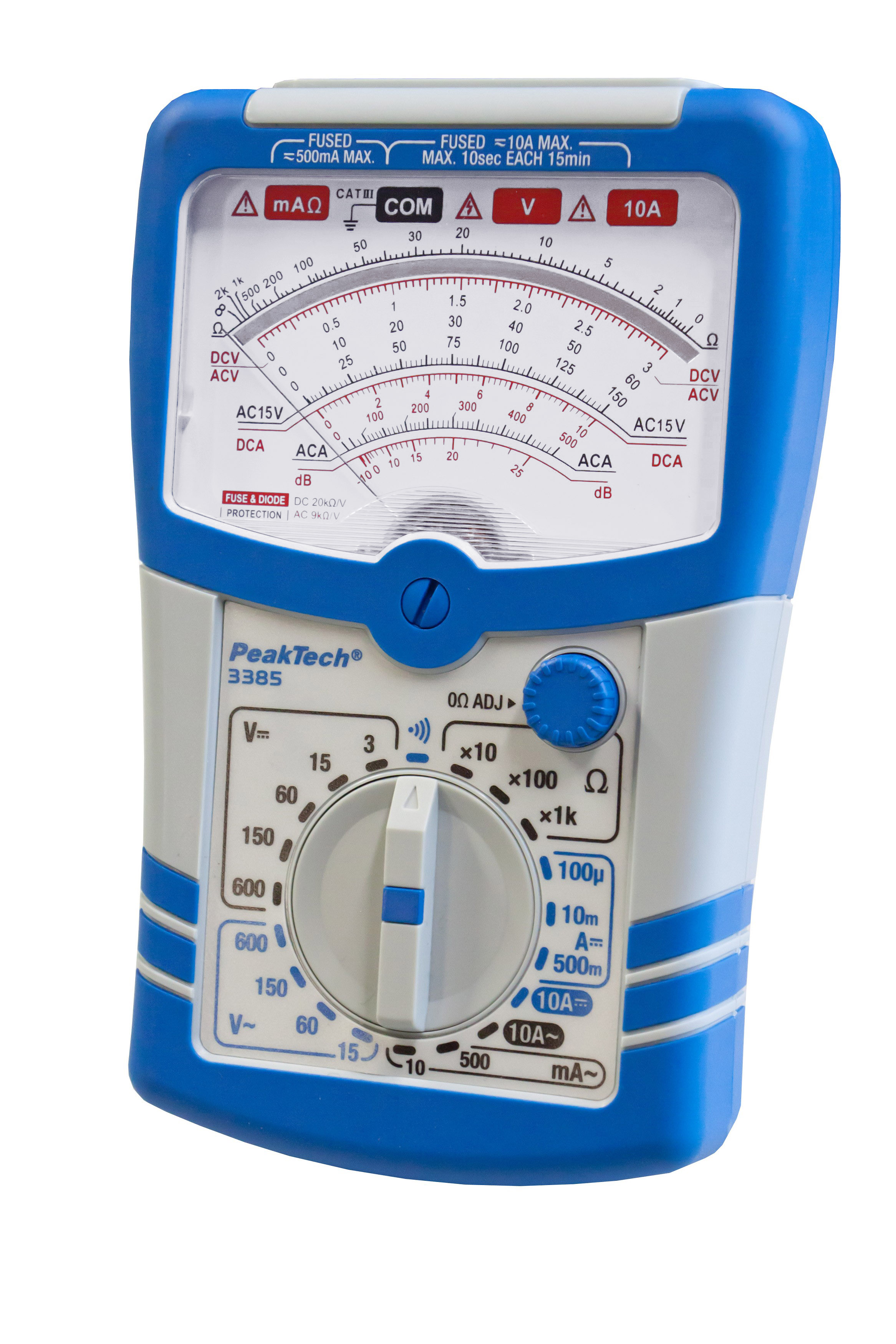

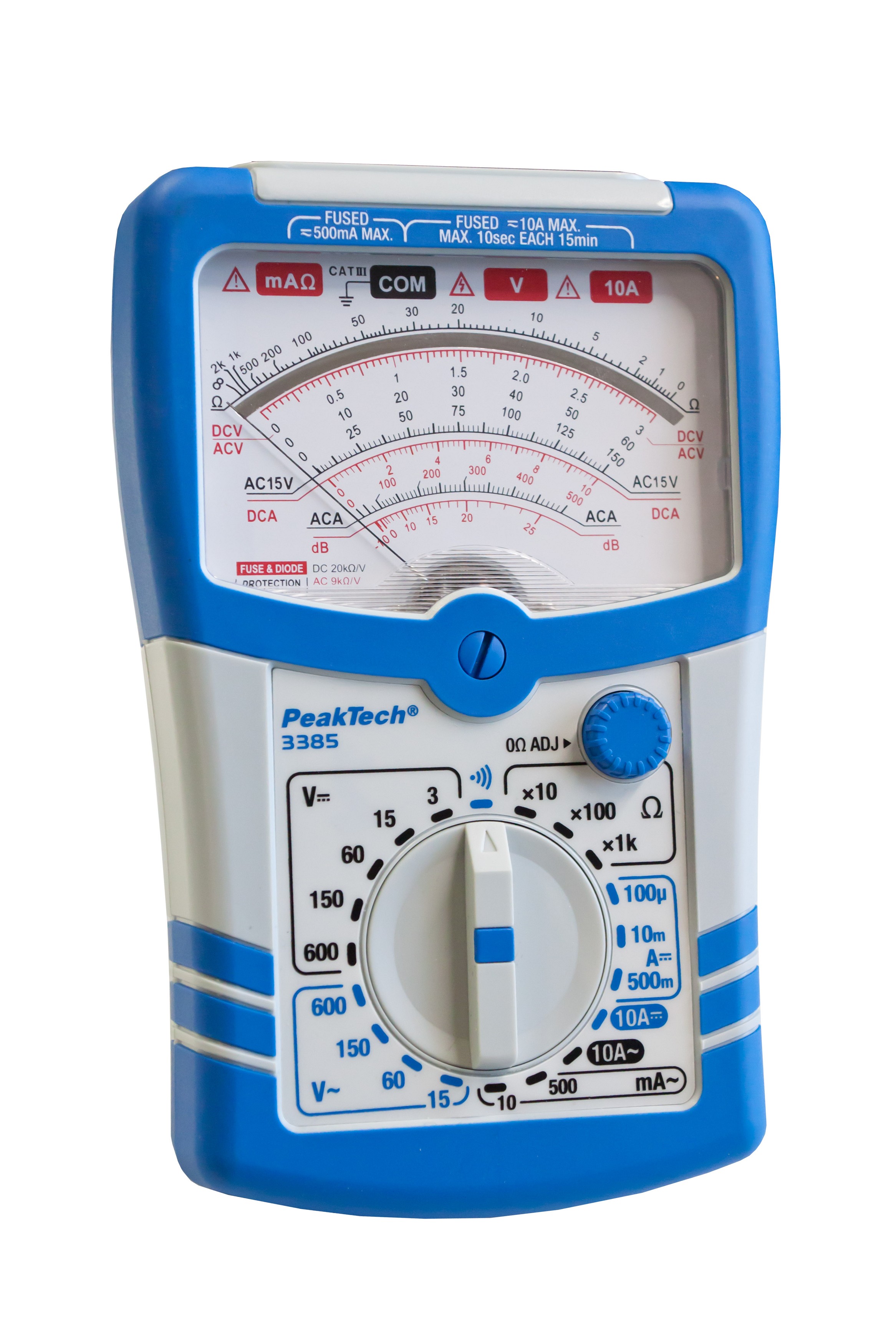

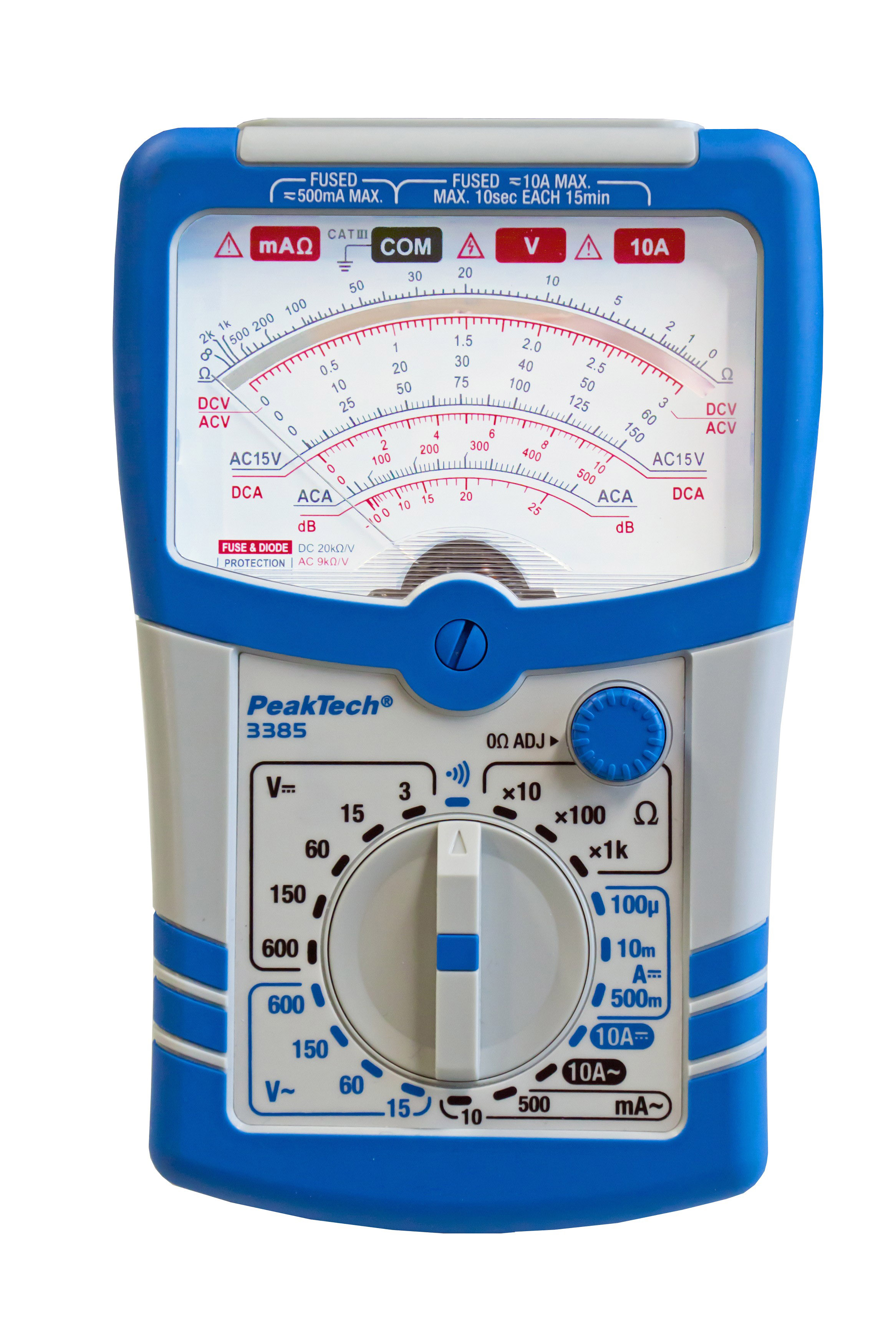

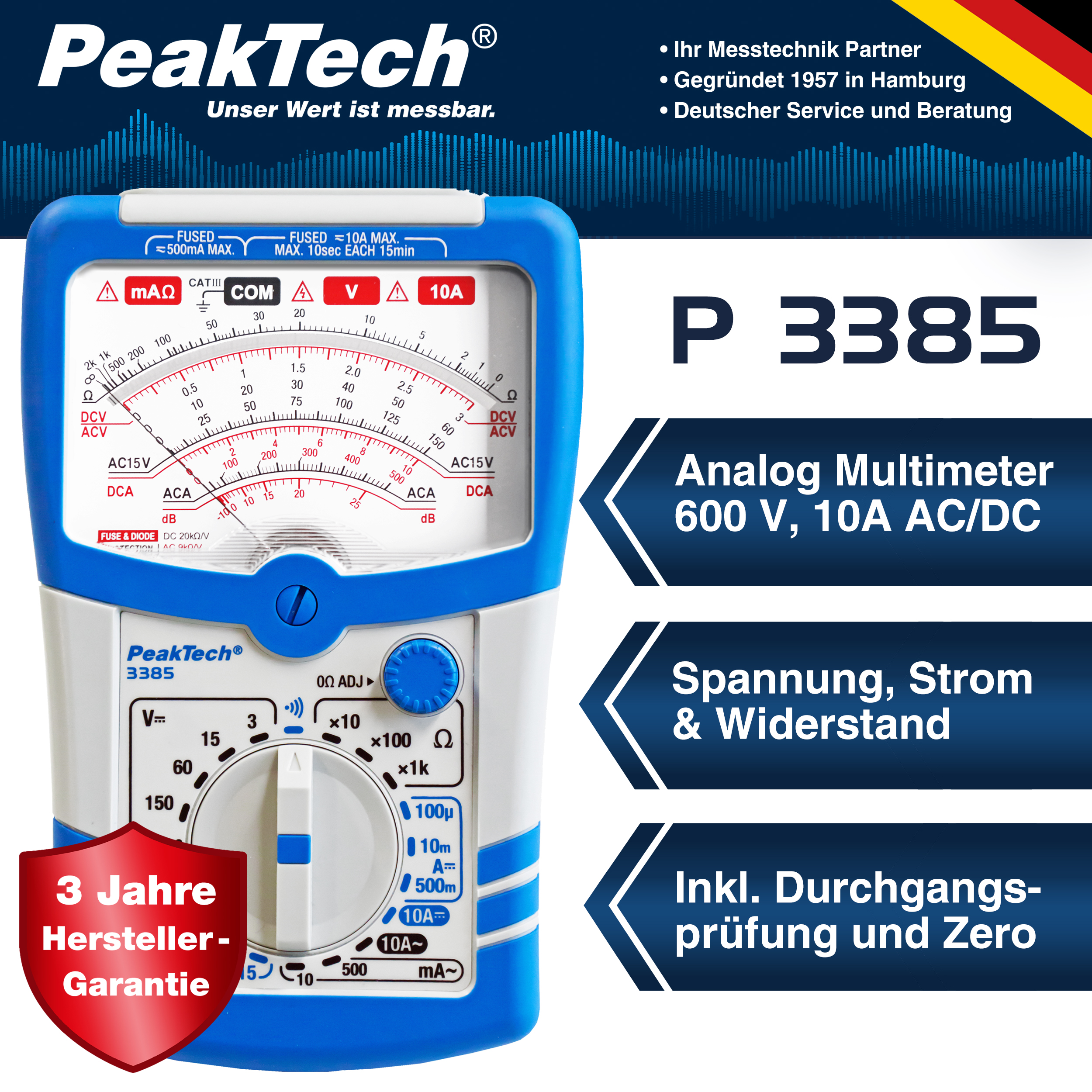

«PeakTech® P 3385» Analog multimeter, 600V AC/DC, 10A AC/DC, CAT III

€32.90*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 3385

EAN: 4250569400896

Downloads

Product information "«PeakTech® P 3385» Analog multimeter, 600V AC/DC, 10A AC/DC, CAT III"

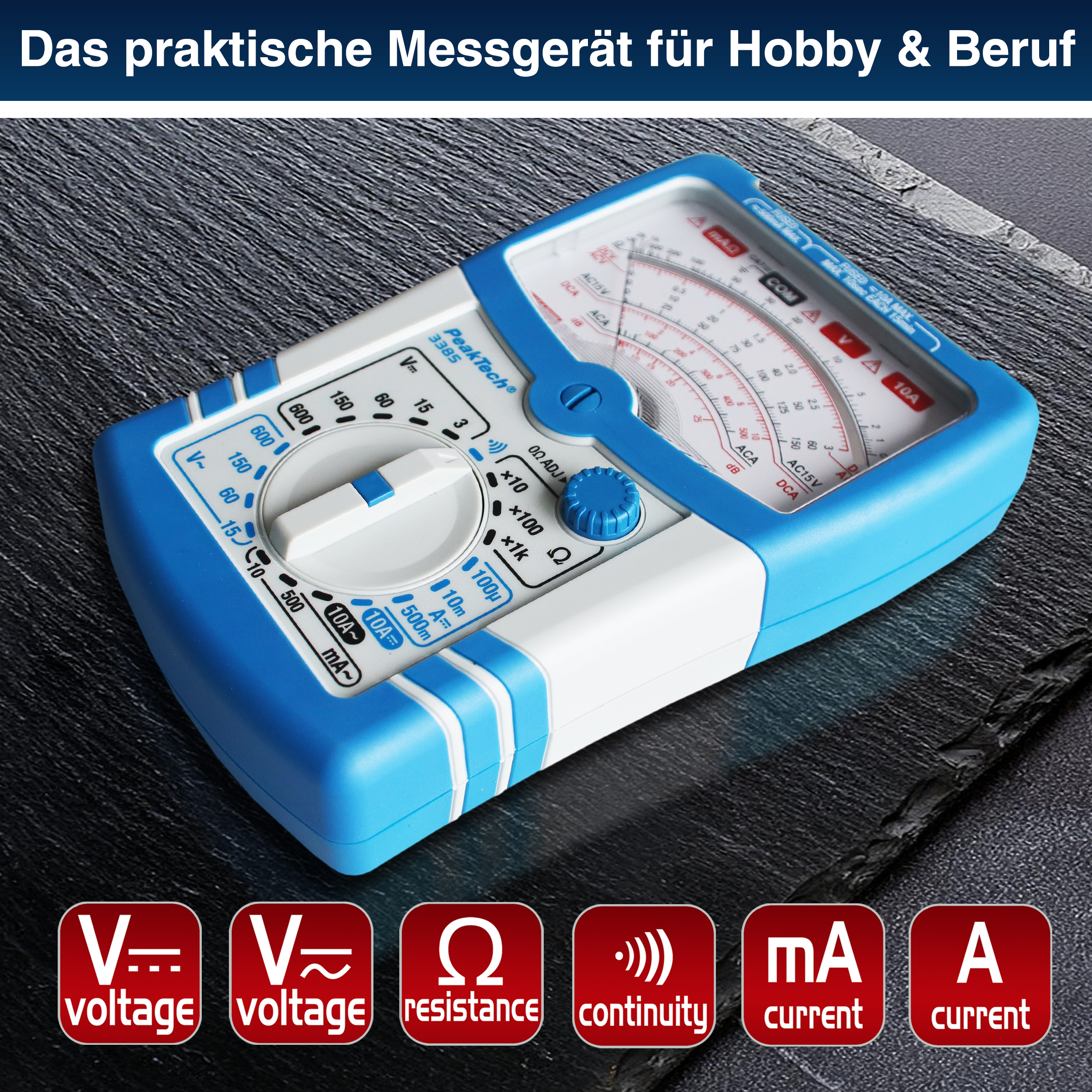

This analog multimeter has a variety of measurement functions, such as the measurement of AC and DC voltage, direct and alternating current or resistance measurement with an acoustic continuity tester. Due to the analog technology, batteries are only required for functions such as resistance measurement, in which the multimeter has to output a test voltage. The voltage and current measurement, on the other hand, does not require any voltage from the batteries. Special protection is provided by the housing, which is provided with a sprayed-on rubber coating and is protected against falling damage. User safety is also guaranteed via the CAT III 600V overvoltage category.

Display Type:	Analog
Over voltage category:	CAT III 600 V
V DC max.:	600V
A AC max.:	10A
OHM max.:	2 MΩ
mA DC max.:	500mA
V AC max.:	600 V
A DC max.:	10A
mA AC max.:	500 mA

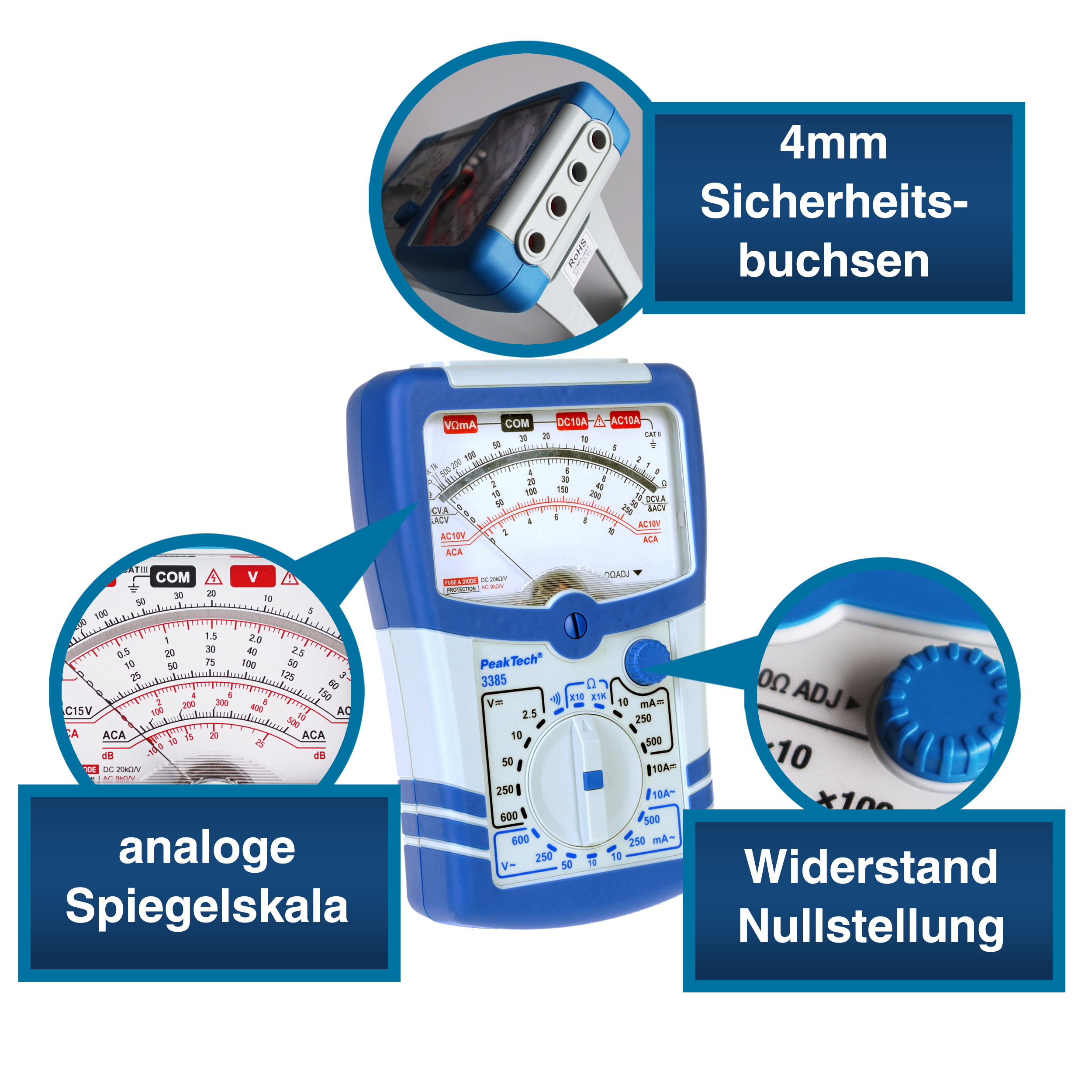

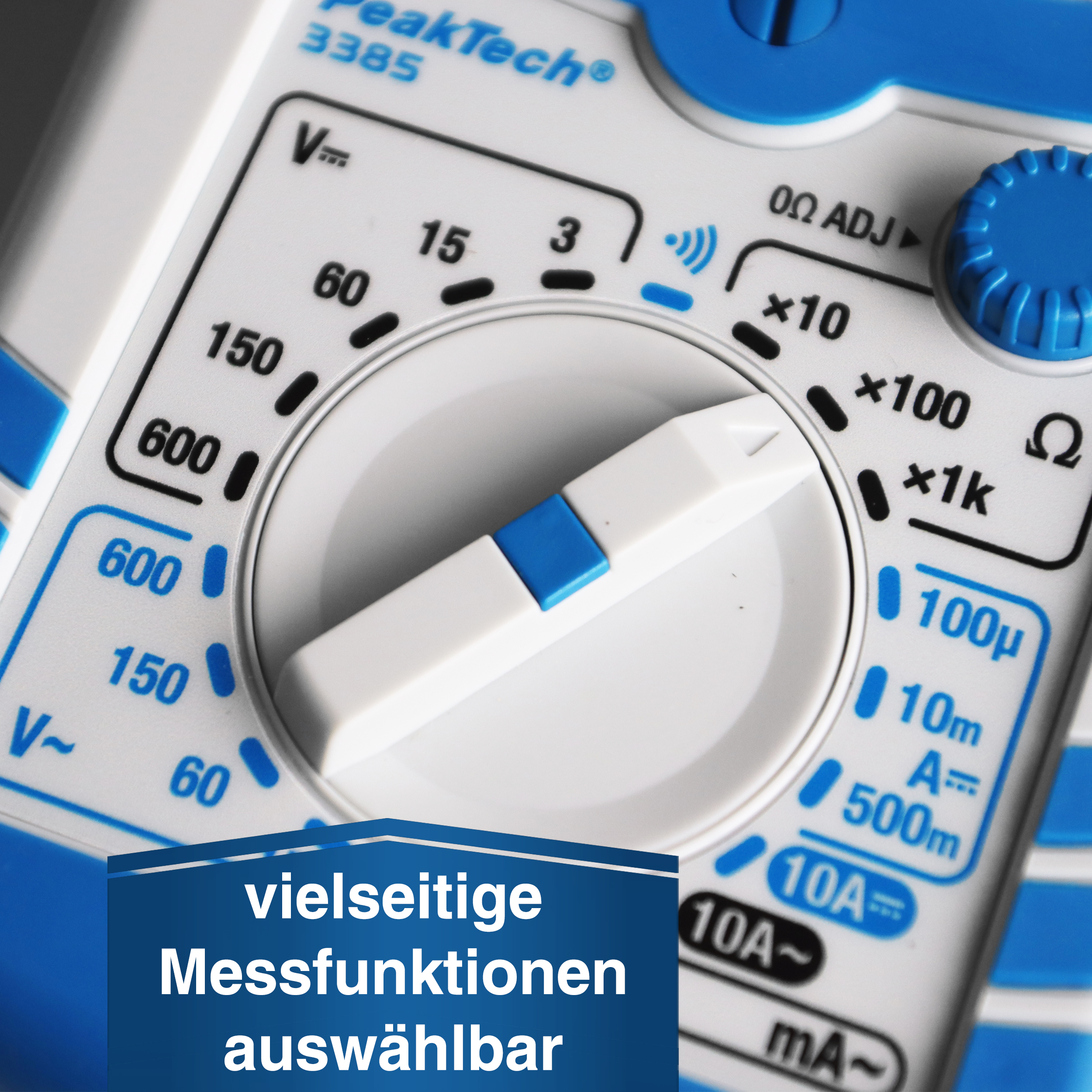

20 measuring ranges; 75 mm mirror scale
Input resistance: 20 kΩ / V DC - 9 kΩ / V AC
Continuity test with acoustic signal
Safety: EN 61010-1; CAT III 600 V

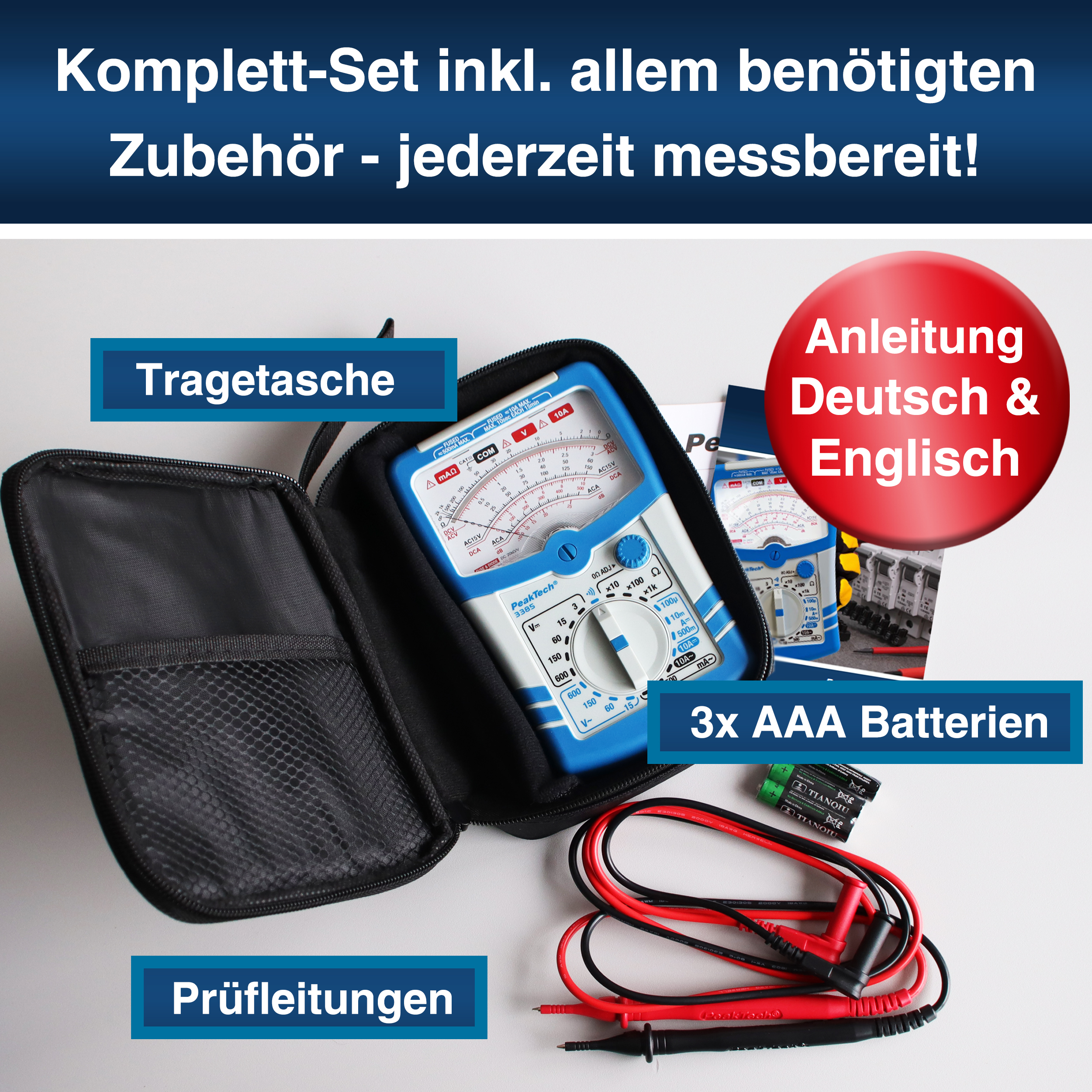

Accessories: bag, test leads, batteries and manual
