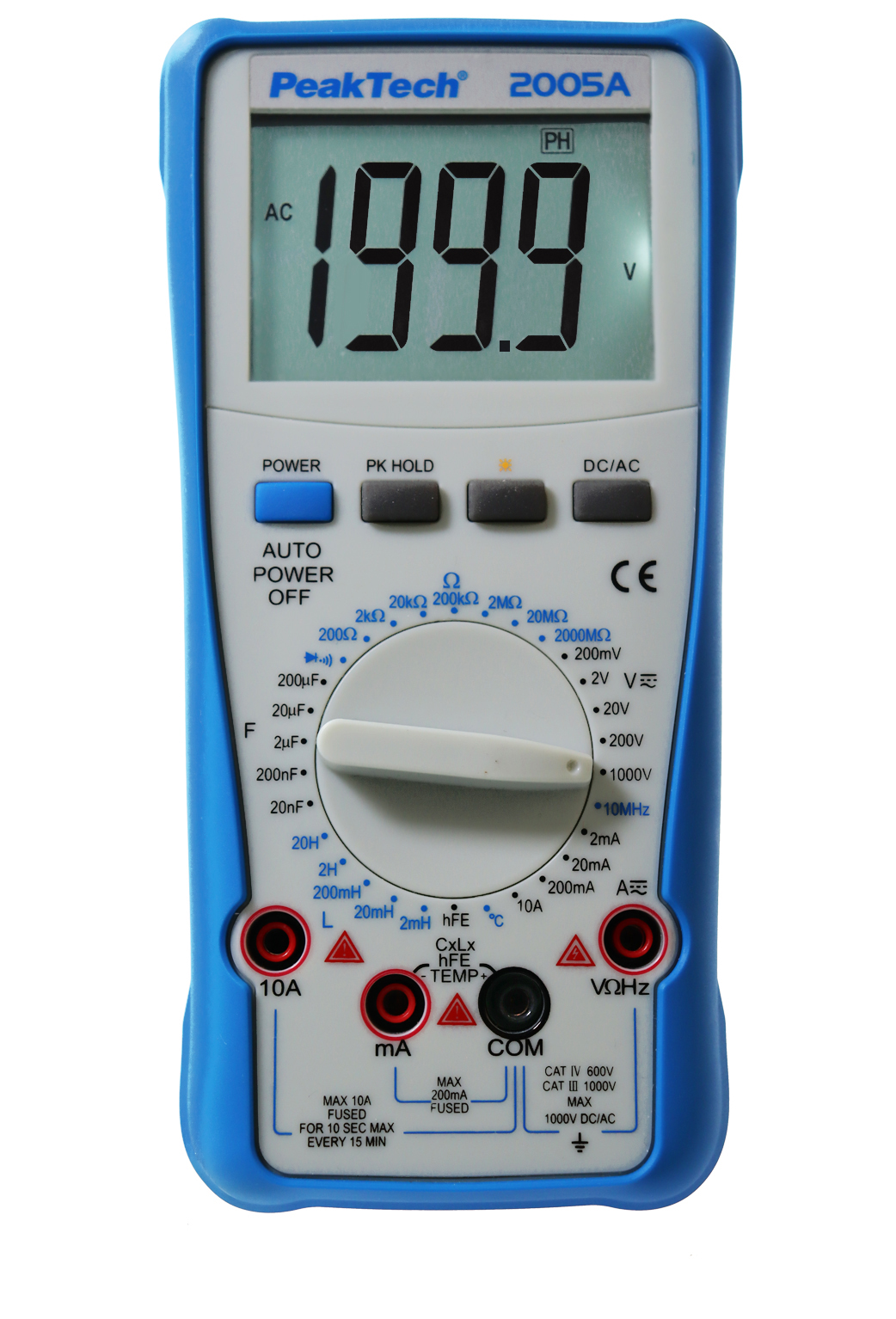

«PeakTech® P 2005 A» 1000 V digital multimeter 2000 Counts, 10A AC/DC

PDF Datasheet
Product number: P 2005 A
EAN: 4250569405587
Product information "«PeakTech® P 2005 A» 1000 V digital multimeter 2000 Counts, 10A AC/DC"
The new PeakTech 2005 A offers a multitude of measurement functions for electrical measured variables for every user from industry, craftsmanship, training, hobby and the laboratory. It was manufactured according to the latest development aspects and has a double-insulated injection-molded housing with rubber coating, a tilt stand on the back, which can be removed to replace the batteries. The fuses are located underneath the stand as well, if it is neccessary to replace these. The device is working with a battery and has an LCD screen with a character height of 32 mm. The manual range selection enables a very fast response time and the measured values ​​can be easily read on the illuminated display. The PeakTech 2005 A can be used to measure DCV, ACV, DCA, ACA, resistance, capacitance, diode, transistor, continuity, temperature, frequency and inductance, which create a wide range of applications. Due to the high overvoltage category CAT III 1000V, you can use this device safely on electrical installations and systems.
Basic Accuracy DC: +/- 0,5%
Capacitance max.: 200 µF
Digital counts: 2.000
Display Type: LCD
Inductance max.: 20 H
Over voltage category: CAT III 1000 V, CAT IV 600 V
Range selection: Manual
True RMS:
V DC max.: 1000V
hFE:
A AC max.: 10A
Hz max.: 10 MHz
OHM max.: 2000 MΩ
Temp. max.: 1000 °C
Temp. min.: -20 °C
mA DC max.: 200mA
V AC max.: 1000V
A DC max.: 10A
mA AC max.: 200 mA
  • 32 mm, 3 1/2 digit LCD display (max. 1999) with backlight
  • Manual range selection with fast response time
  • Inductance measurement up to 20 H
  • HFE transistor-test
  • PeakHold function
  • Temperature measurement using type-K probe
  • Auto power off and low battery indication
  • Safety: EN 61010-1; CAT III 1000 V
  • Accessories: Carrying case, test leads, thermocouple, temperature adpater, battery and user manual

Zubehör / Accessories:

«PeakTech® P 8200» Measuring Accessories Set
This extensive collection of test accessories for the electronics area provides the best suitable measuring adapter for the desired application for each digital multimeter. In addition, these high quality clips and cables are all manufactured to the latest safety standards and provides a high safety in every application for the user. For the material, a flexible plastic was chosen, which can also withstand the hardest kinds of usage.

€43.90*
«PeakTech® P 7000» Tapping clamps for Digital Multimeter up to 10 A
These measuring accessories with 4 mm sockets can be connected to almost all measuring devices. Thanks to its hook-shaped alligator clips, it is possible to carry out measurements even in hard-to-reach points on a circuit. A maximum of safety is achieved by the double insulation of the lines and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€15.90*
«PeakTech® MKS-10» Measuring tip set with 1 mm test tips
This measuring tip set for all standard measuring lines with 4 mm safety sockets was developed in order to be able to measure even small components precisely. This measuring tip set also includes the matching alligator clips, that it is possible to fix the measuring tips to the component to be measured. When using the measuring tips without the alligator clips, an overvoltage category of CAT I 1000 V is guaranteed. By using the alligator clips, it is possible to use the overvoltage category CAT III.

€10.90*
«PeakTech® P 7005» Test Leads for Digital Multimeter with extension
This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. With the extension adapters, it is possible to connect the test leads to other test leads in order to carry out measurements over long distances. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*
«PeakTech® P 7015» Alligator clamps for Digital Multimeter
The alligator clips enable safe measurements even on bare or exposed cables. With their 4 mm sockets, they can be used for almost any multimeter and measuring device. A maximum of safety is achieved by the protection against against accidental contact with conductive metal parts. This makes these accessories ideal for use in training and service.

€8.90*
«PeakTech® TKS-4» Test Leads with 4 mm spring-contact probe tip
This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The 4mm diameter spring contact test probes of the TKS-4 cables fit exactly into power sockets and are provided with removable protective caps. In CAT I / CAT II measurement environments, these can be accepted for a probe tip length of 18mm, in CAT III / CAT IV measurement environments they must remain attached for better user safety and provide a probe tip length of 4mm.

€7.90*
«PeakTech® P 7010» Tapping clamps for Digital Multimeter; 5 A
This measuring accessory with 4 mm sockets can be connected to almost all measuring devices and power supplies. Thanks to the fine alligator clips, even measurements on small components or at hard-to-reach points on circuits are possible. A maximum of security is achieved by the double insulation of the wires and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€7.90*
«PeakTech® TKS-8» Test Leads with 2 mm probe tip and sleeves
This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The 2mm diameter test probes of the TKS-8 cables are provided with removable protective caps. In CAT I / CAT II measurement environments, these can be accepted for a probe tip length of 18mm, in CAT III / CAT IV measurement environments they must remain attached for better user safety and provide a probe tip length of 4mm.

€7.90*
«PeakTech® P 7020» Test Leads for Digital Multimeter
This measuring accessorie with 4 mm sockets can be connected to almost all measuring devices and power supplies. A maximum of safety is achieved by the double insulation of the wires and the protection against accidental contact with conductive metal parts when closed. This makes these accessories ideal for use in training and service.

€5.90*
«PeakTech® P 7025» Test Leads for Digital Multimeter with coupling
These test leads with 4 mm sockets have a coupling, which makes it possible to connect other test leads to them. The safety of these measuring wires is ensured by the double insulation of the lines and the contact protection against conductive metal parts. This makes these accessories ideal for use in training and service.

€5.90*
«PeakTech® TKS-2» Test Leads with 2 mm probe tip
This test cable set for multimeters consists of safety test leads in accordance with the EN 61010-031 standard with 4 mm safety sockets in a robust design with a cable length of 120 cm and 90 ° angled plugs. The test probes length of the TKS-2 cables are limited to 2mm for the best possible user safety when used in CAT III and CAT IV environments.

€4.90*

Ersatzsicherungen/Fuses:

«PeakTech® P 7530» microfuse ~ 10 A / 1000 V ~ 10.3 x 38 mm ~ super fast acting (FF)
Modern device fuses with ceramic bodies offer a significantly higher level of protection against damage to the measuring device when triggered than conventional glass fuses. Due to the larger design, a voltage flashover between the internal fuse holders of modern measuring devices can be effectively prevented even with high test current voltages. Triggered fuses may only be replaced with replacement fuses of the same design and specifications in order to guarantee the safety of the device and thus also the safety of the user in future measurements.

€3.29*
«PeakTech® P 7640» miniature fuse ~ 0.2 A / 1000 V ~ 6.3 x 32 mm ~ super quick (FF)
Modern device fuses with ceramic bodies offer a significantly higher level of protection against damage to the measuring device when triggered than conventional glass fuses. Due to the larger design, a voltage flashover between the internal fuse holders of modern measuring devices can be effectively prevented even with high test current voltages. Triggered fuses may only be replaced with replacement fuses of the same design and specifications in order to guarantee the safety of the device and thus also the safety of the user in future measurements.

€1.49*
