«PeakTech® P 1670» TrueRMS clamp meter 50,000 counts 1000 A AC/DC, BT

€159.90*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 1670

EAN: 4250569403309

Downloads

Product information "«PeakTech® P 1670» TrueRMS clamp meter 50,000 counts 1000 A AC/DC, BT"

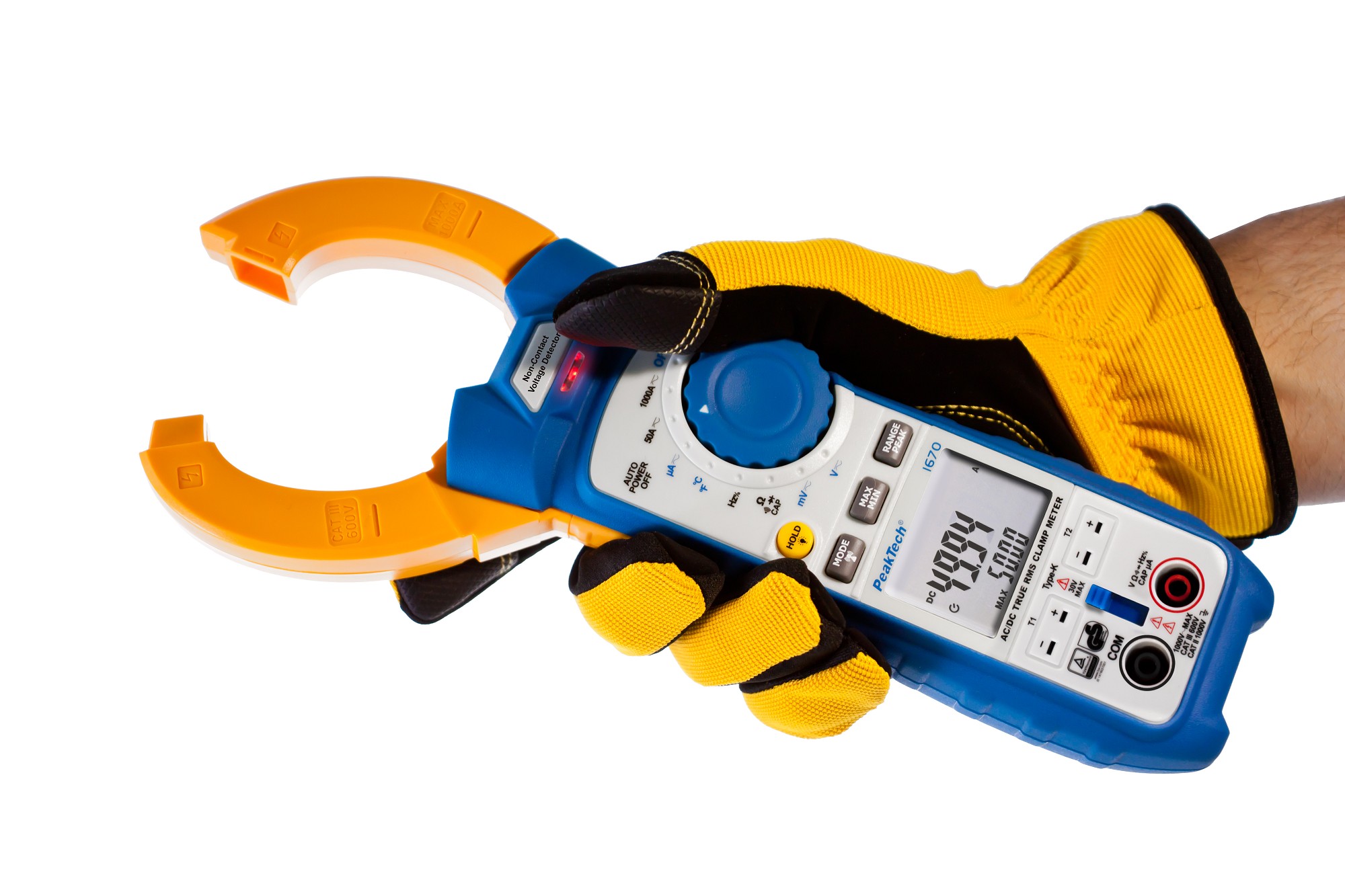

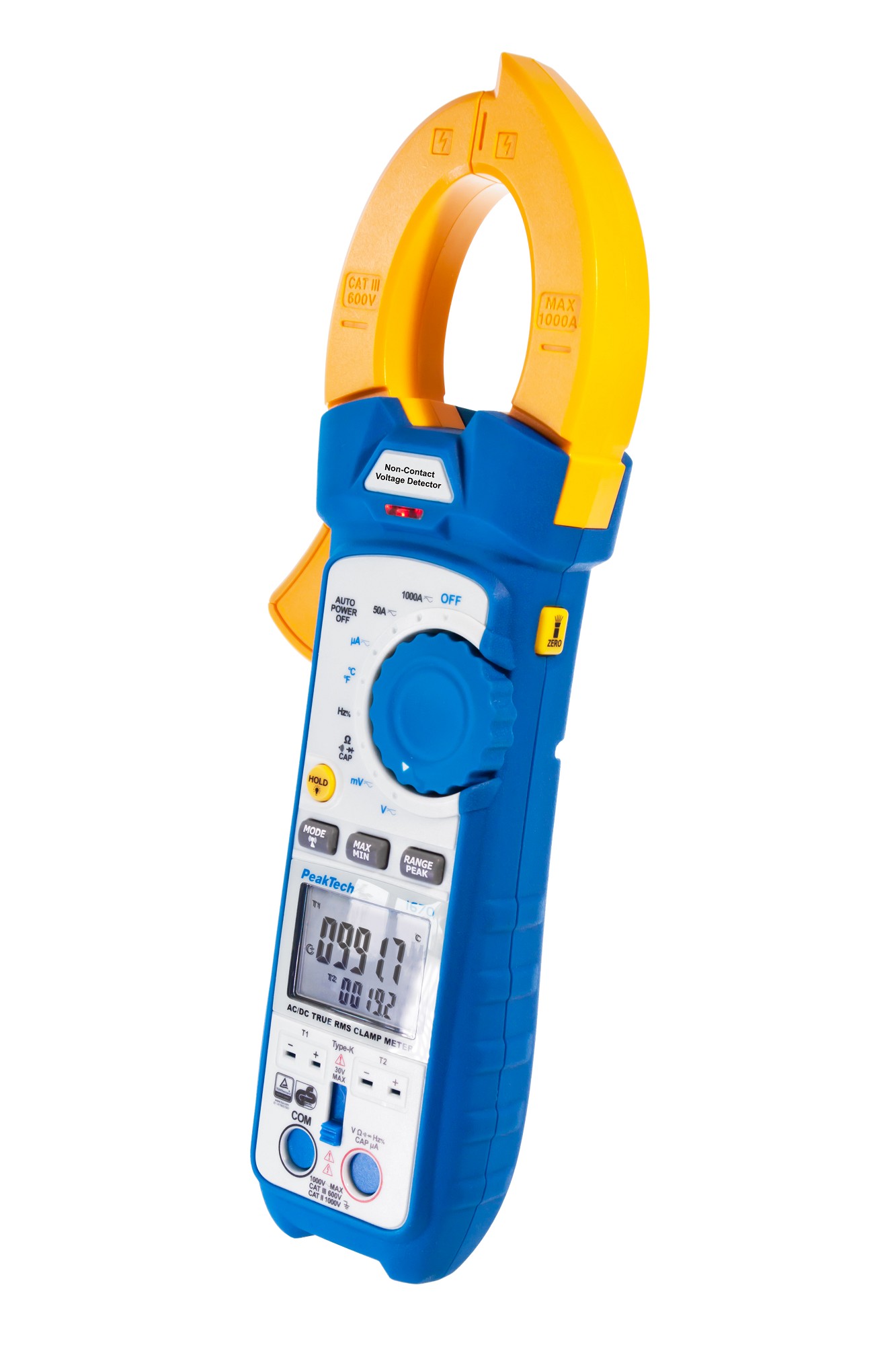

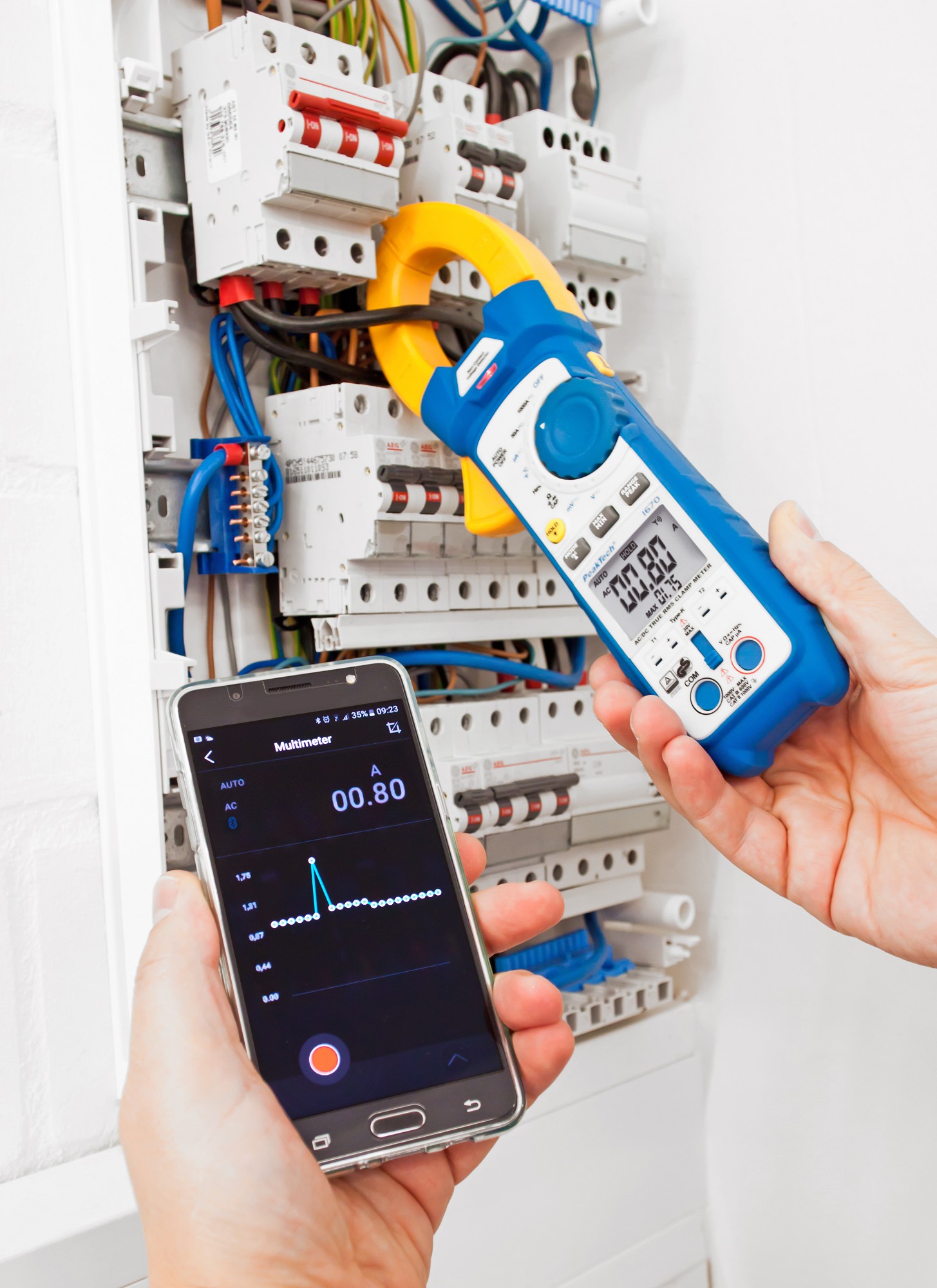

The PeakTech 1670 is a clamp meter for AC and DC currents up to 1000 A. The illuminated LCD display with 50,000 digits ensures a precise measurement result with high basic accuracy and measurement resolution. Current and voltage measurements are carried out as True RMS (True RMS) measurements. Via the integrated Bluetooth interface, measured values can be logged on the Windows PC or mobile phone using an app, which enables a multitude of applications in moving systems, security areas or locations that are difficult to access. In addition, this model has extensive multimeter functions for voltage, resistance, frequency, capacitance and temperature measurement. Continuity tests with acoustic signals and diode tests can also be carried out. Due to its high precision, the Bluetooth interface, functionality and simple handling, this clamp meter is particularly suitable for electronics specialists or industrial users.

Bluetooth:	■
Capacitance max.:	5 mF
Clamp Opening:	48 mm
Digital counts:	50.000
Display Type:	LCD
LED-lamp:	■
Over voltage category:	CAT II 1000 V, CAT III 600 V
TÜV/GS:	■
V DC max.:	600V
A AC max.:	1000 A
Hz max.:	10 MHz
OHM max.:	50 MΩ
Temp. max.:	1000 °C
Temp. min.:	-100 °C
mV DC max.:	500 mV
µA DC max.:	5000 µA
V AC max.:	600 V
mV AC max.:	500 mV
A DC max.:	1000A
µA AC max.:	5000 µA

LCD multi-line display with 50,000 digits and backlight
True RMS AC AC and DC DC measurements
Continuity tester, diode test and Hz / duty function
Dual temperature measurement function with included wire sensors

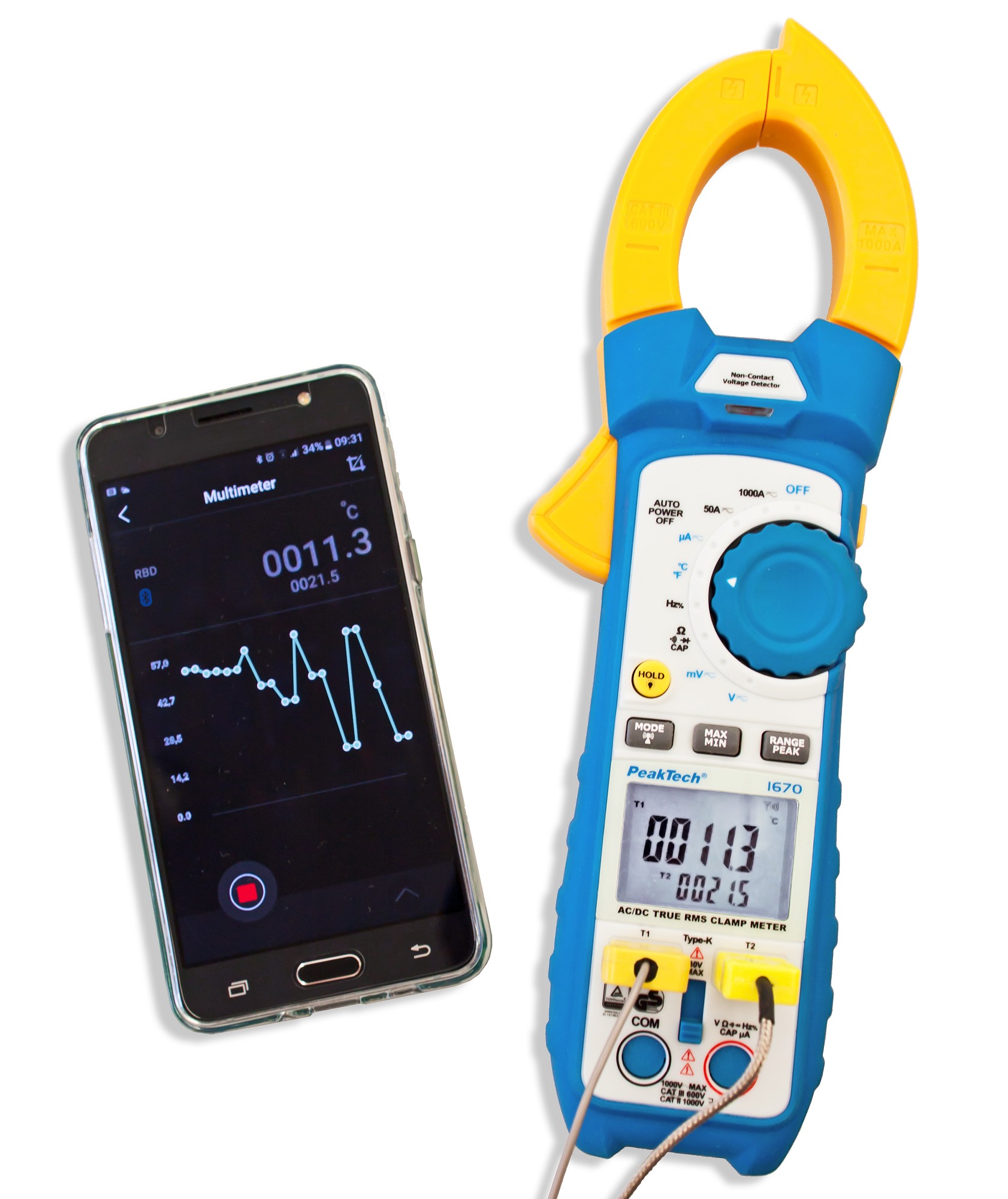

Bluetooth interface for app and PC software
Data hold function, automatic and manual range selection
Maximum value, minimum value function and PEAK function
Conductor diameter up to max. 48 mm
Safety: TÜV / GS, EN 61010-1, CAT II 1000V / CAT III 600V
Accessories: temperature sensor and adapter, carrying case, test leads, battery and manual
