«PeakTech® P 1615» Clamp meter 4,000 counts 1000 A AC/DC

€89.90*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 1615

EAN: 4250569400315

Downloads

PeakTech_1610-1625_07-2021_DE-EN-FR-IT-ES.pdf

Product information "«PeakTech® P 1615» Clamp meter 4,000 counts 1000 A AC/DC"

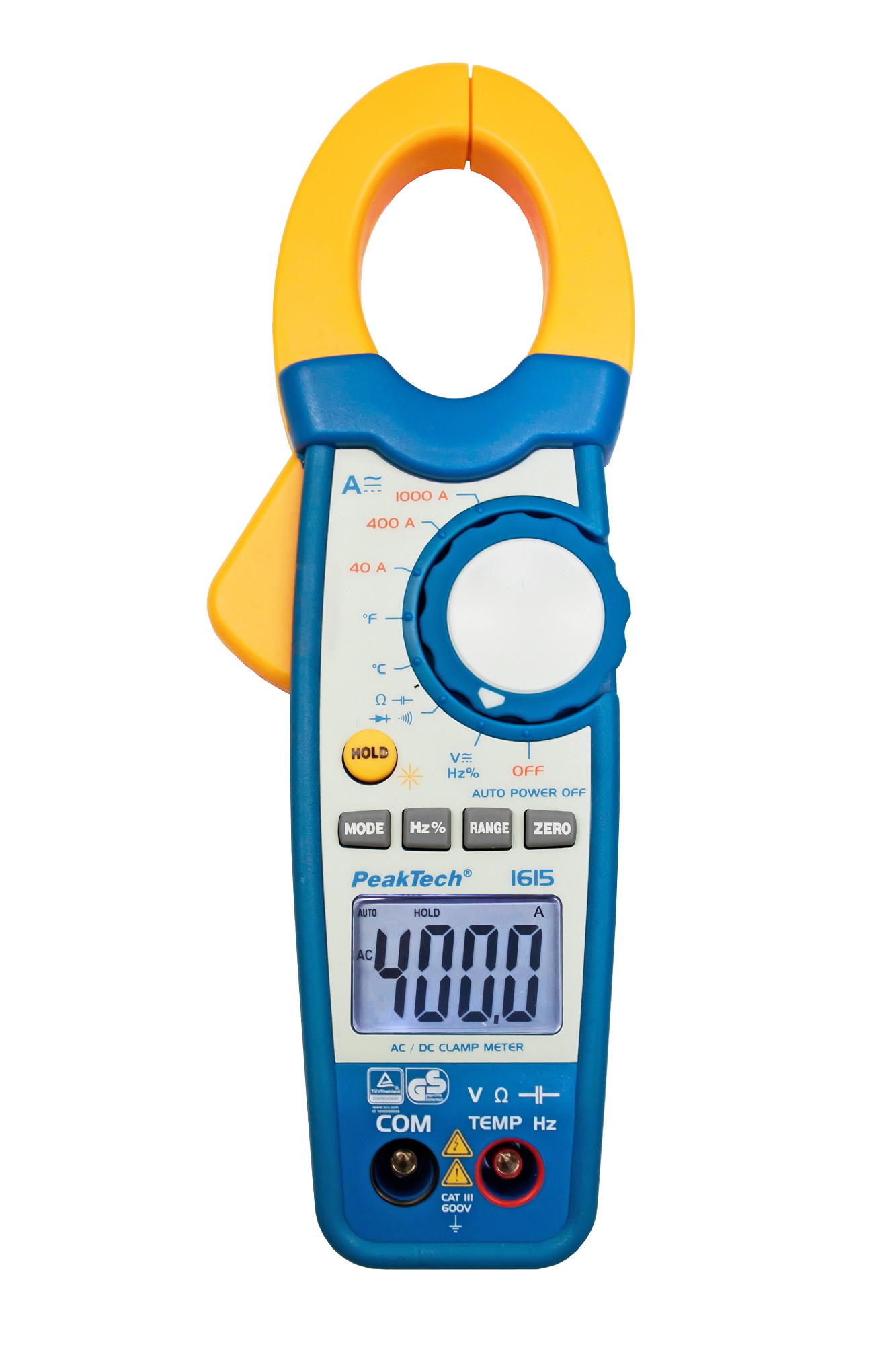

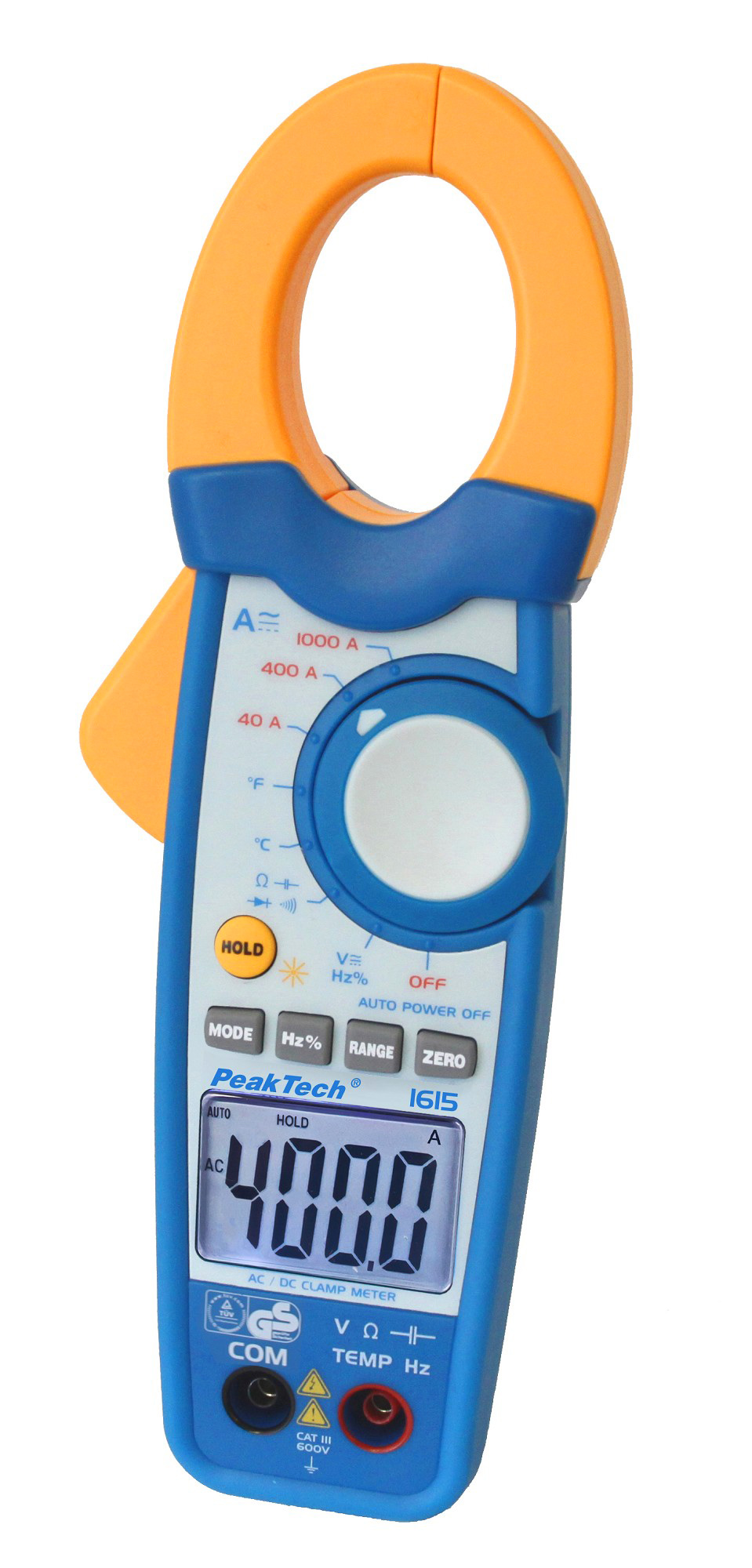

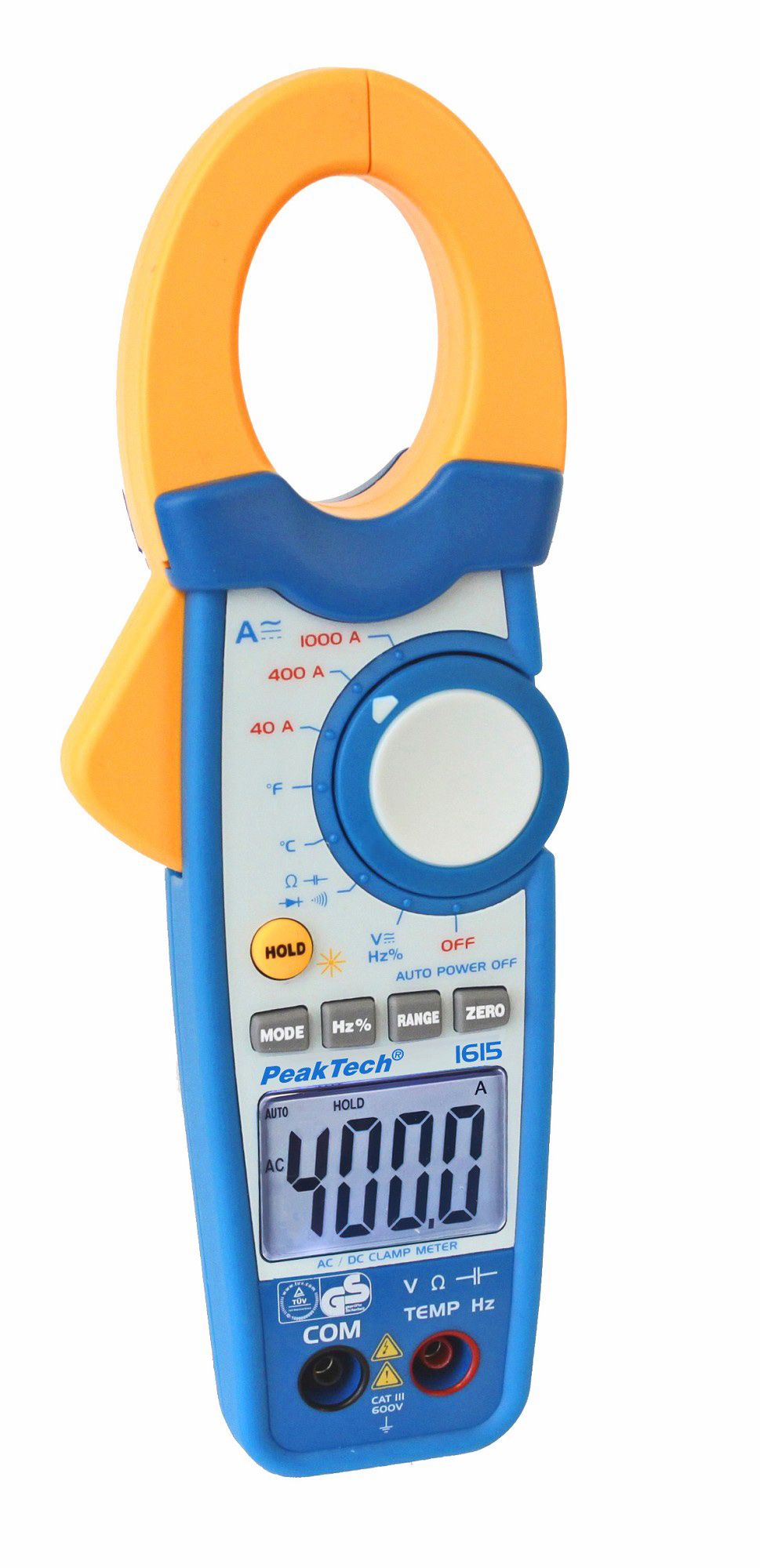

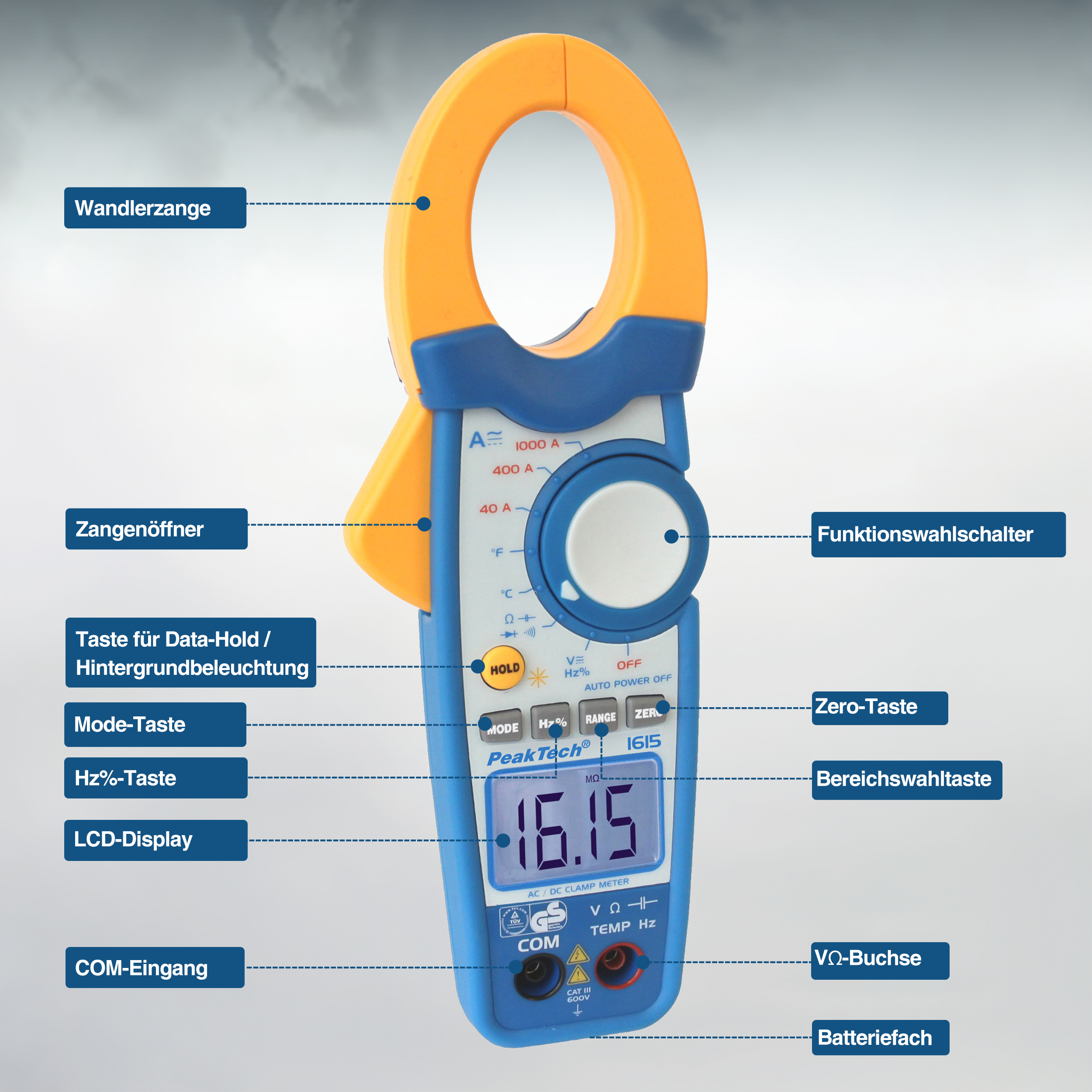

The PeakTech 1615 is a measuring device for AC and DC currents up to 1000 A using a current clamp for conductor diameters up to 35mm. Current clamps are ideal for current measurement in electrical systems and control cabinets, since only single wires are guided through the clamp jaws for contact-free current measurement and no electrical connections have to be disconnected. This method also enables measurements of very high currents, which would overload any standard multimeter if connected directly. In addition, this model has extensive multimeter functions for voltage, resistance, frequency, capacitance and temperature measurement. Continuity tests with acoustic signals and diode tests can also be carried out. Due to its high functionality and simple handling, this current clamp is suitable for electronics specialists, service technicians or hobbyists.

Capacitance max.:	100 µF
Clamp Opening:	35 mm
Digital counts:	4.000
Display Type:	LCD
Over voltage category:	CAT III 600 V
Range selection:	Auto
TÜV/GS:	■
V DC max.:	600V
A AC max.:	1000 A
Hz max.:	100 kHz
OHM max.:	40 MΩ
Temp. max.:	1000 °C
Temp. min.:	-20 °C
mV DC max.:	400 mV
V AC max.:	600 V
mV AC max.:	400 mV
A DC max.:	1000A

Suitable for AC alternating current and DC direct current measurements up to 1000 A.
LCD display with 4000 digits and backlight
Voltage measurements up to 600 V AC/DC
Resistance measurement, continuity tester and diode test
Frequency measurement and Hz / duty function
Capacitance measurement function up to 100 µF
Temperature measuring function with enclosed sensor
Data hold function, automatic and manual range selection
Zero function for direct current measurements
Conductor diameter up to max. 35 mm
Safety: TÜV / GS, EN 61010-1, CAT III 600 V

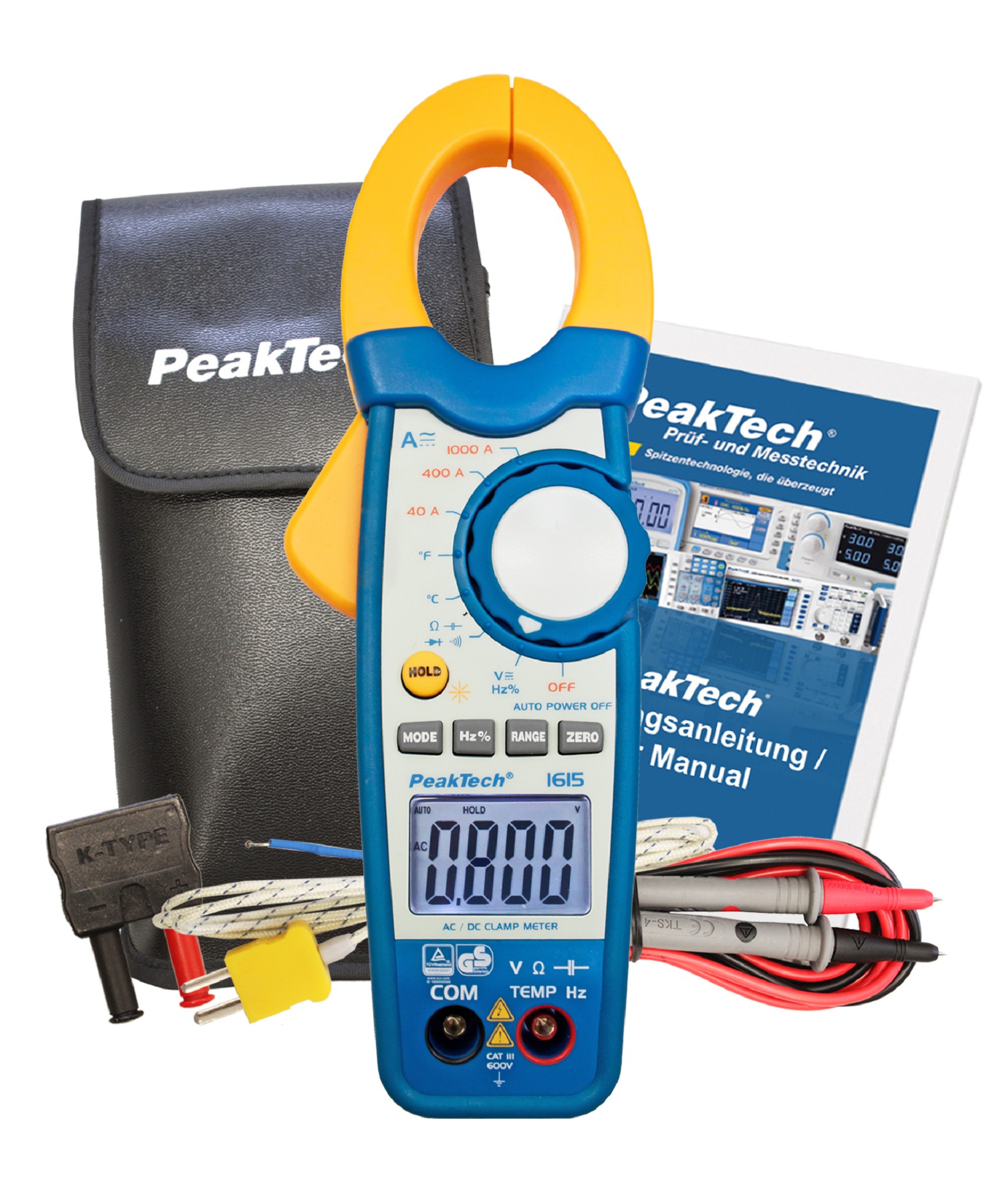

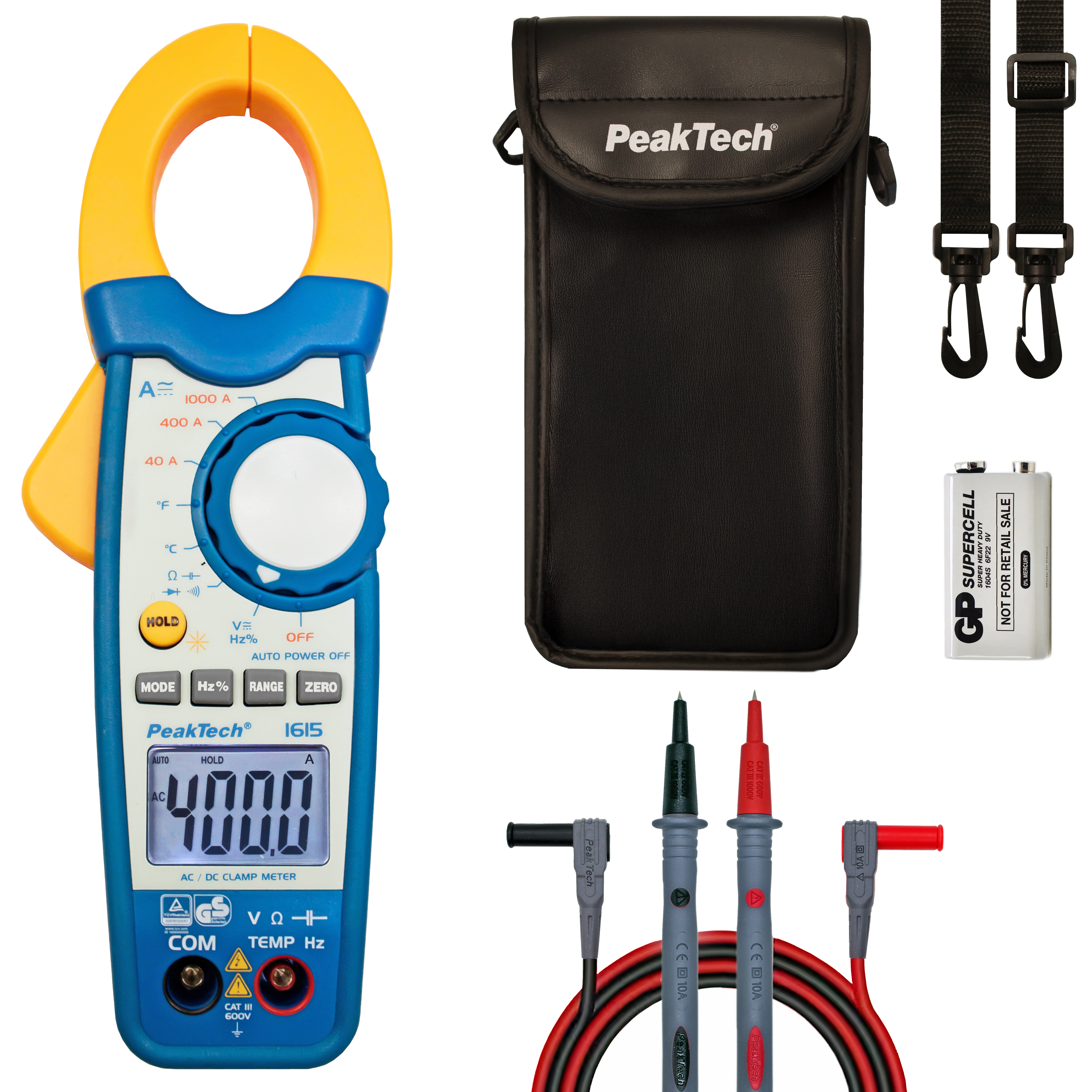

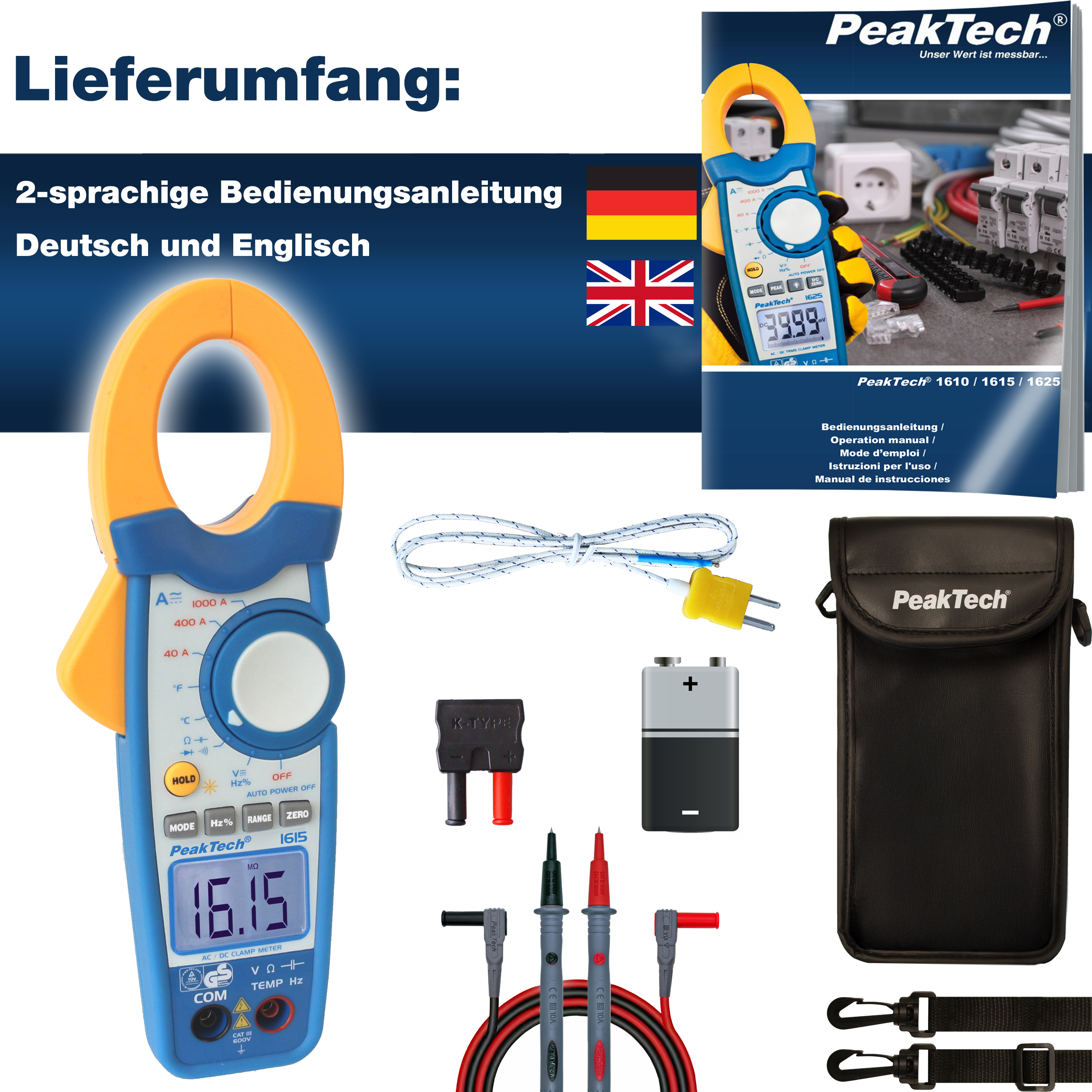

Accessories: temperature sensor and adapter, carrying case, test leads, battery and manual
