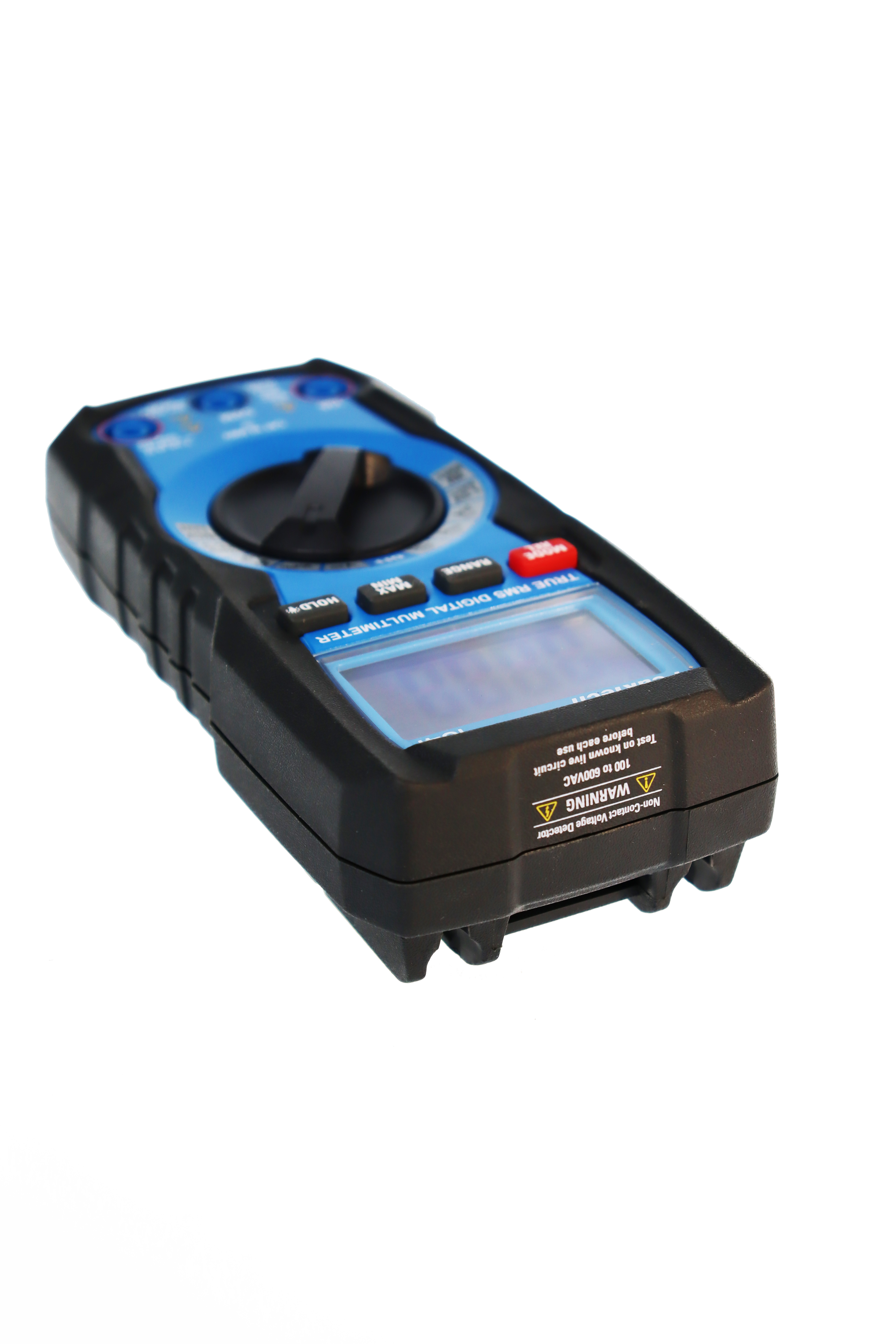

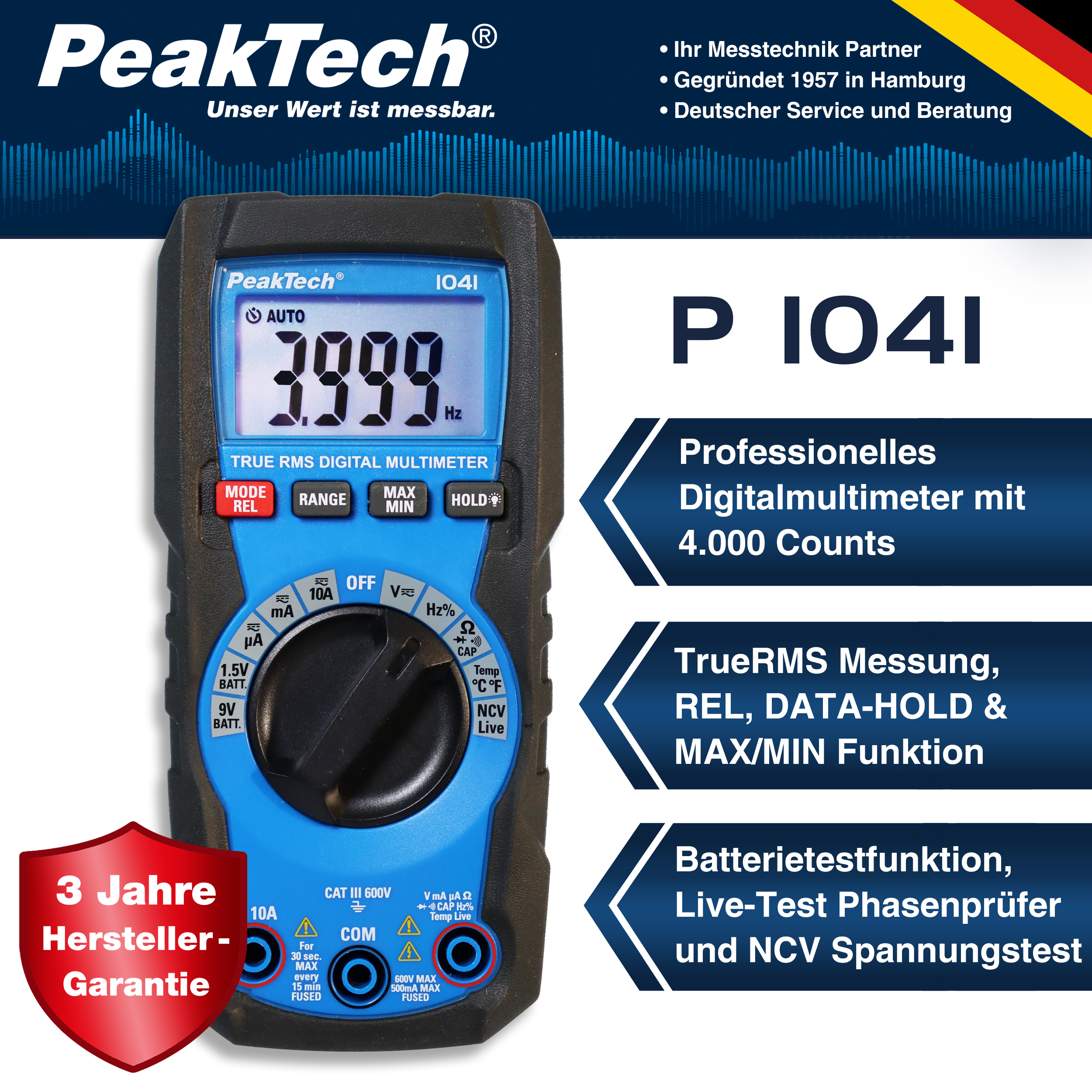

«PeakTech® P 1041» TrueRMS Digital Multimeter 4000 Counts, Auto.Range

€37.90*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 1041

EAN: 4250569406263

Downloads

Product information "«PeakTech® P 1041» TrueRMS Digital Multimeter 4000 Counts, Auto.Range"

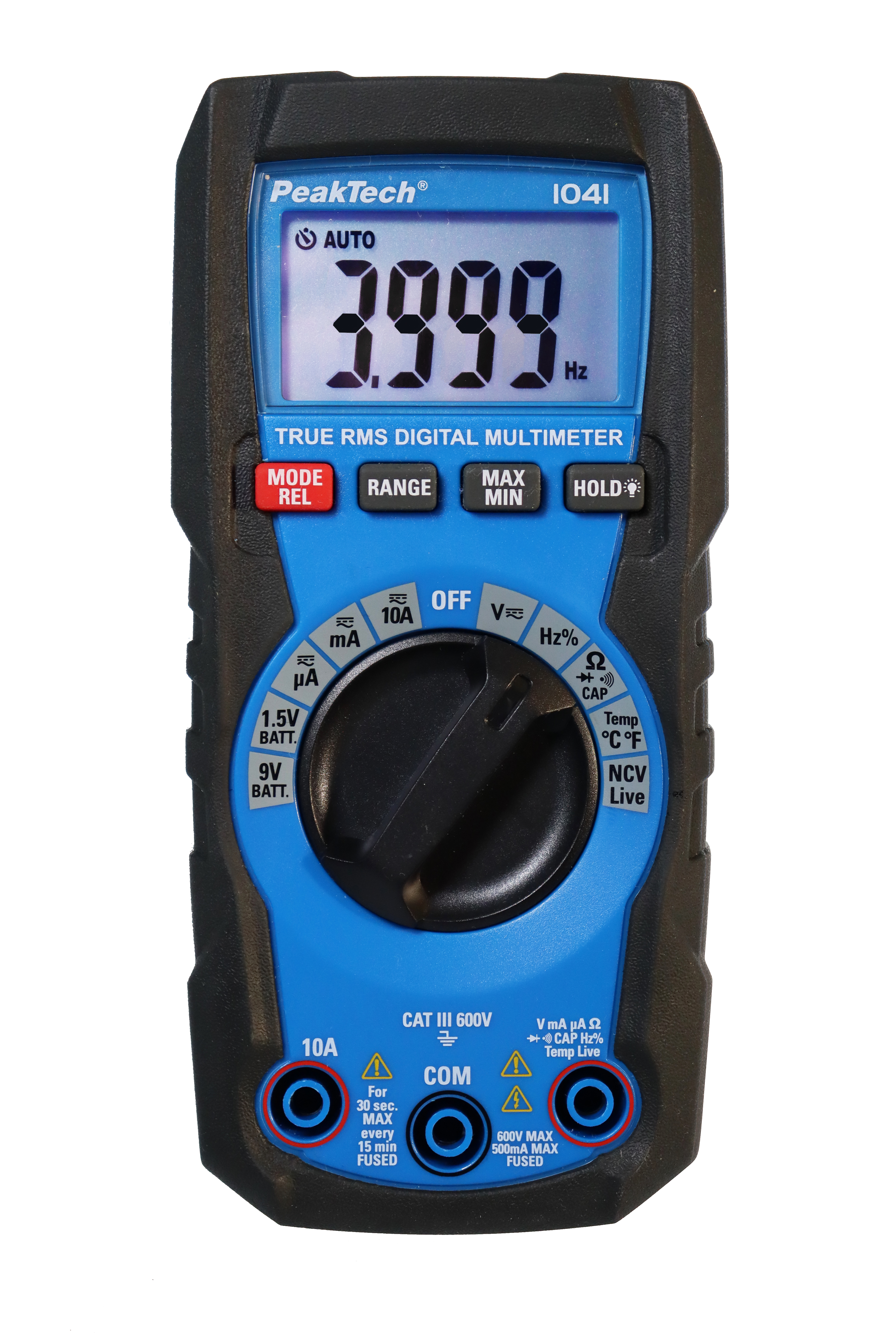

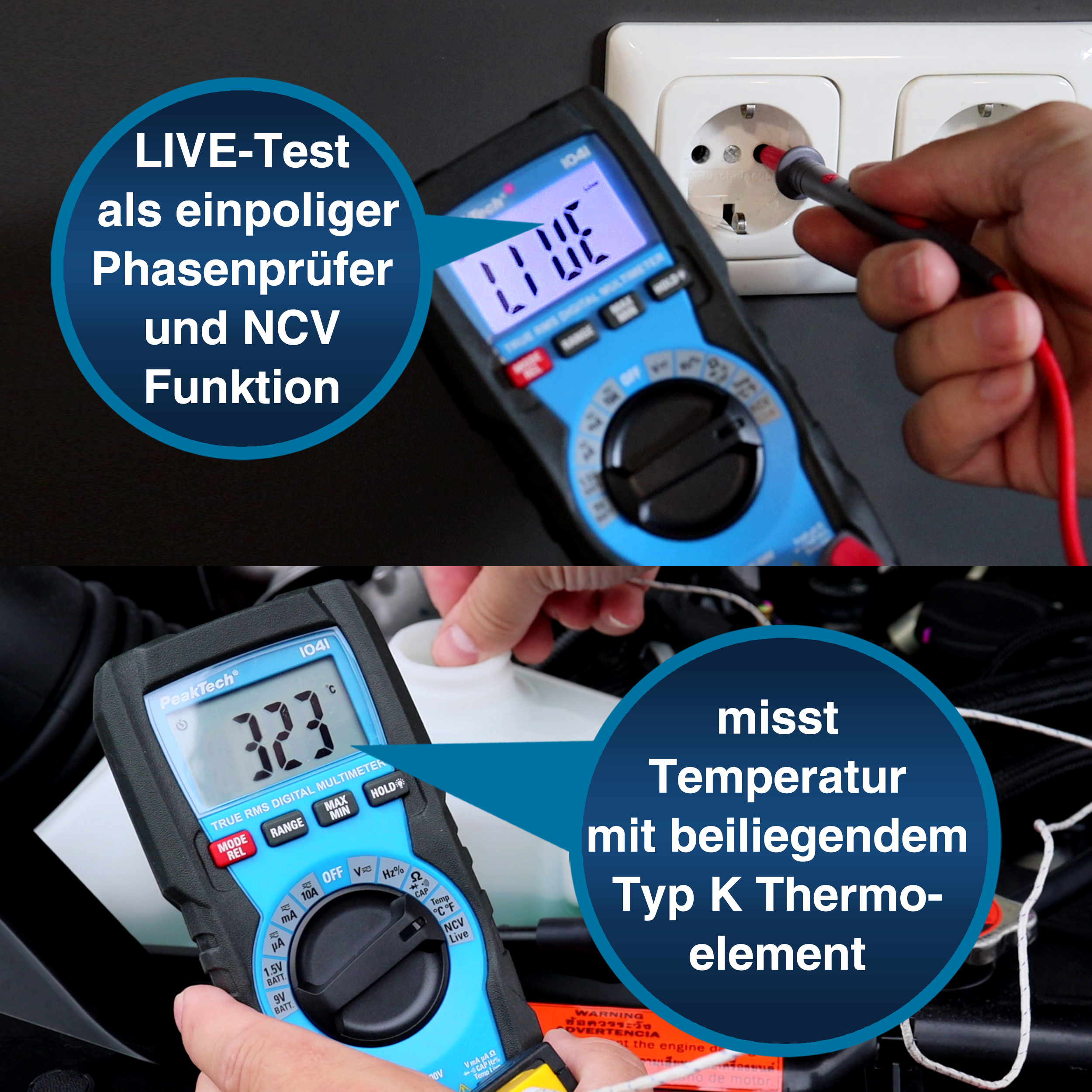

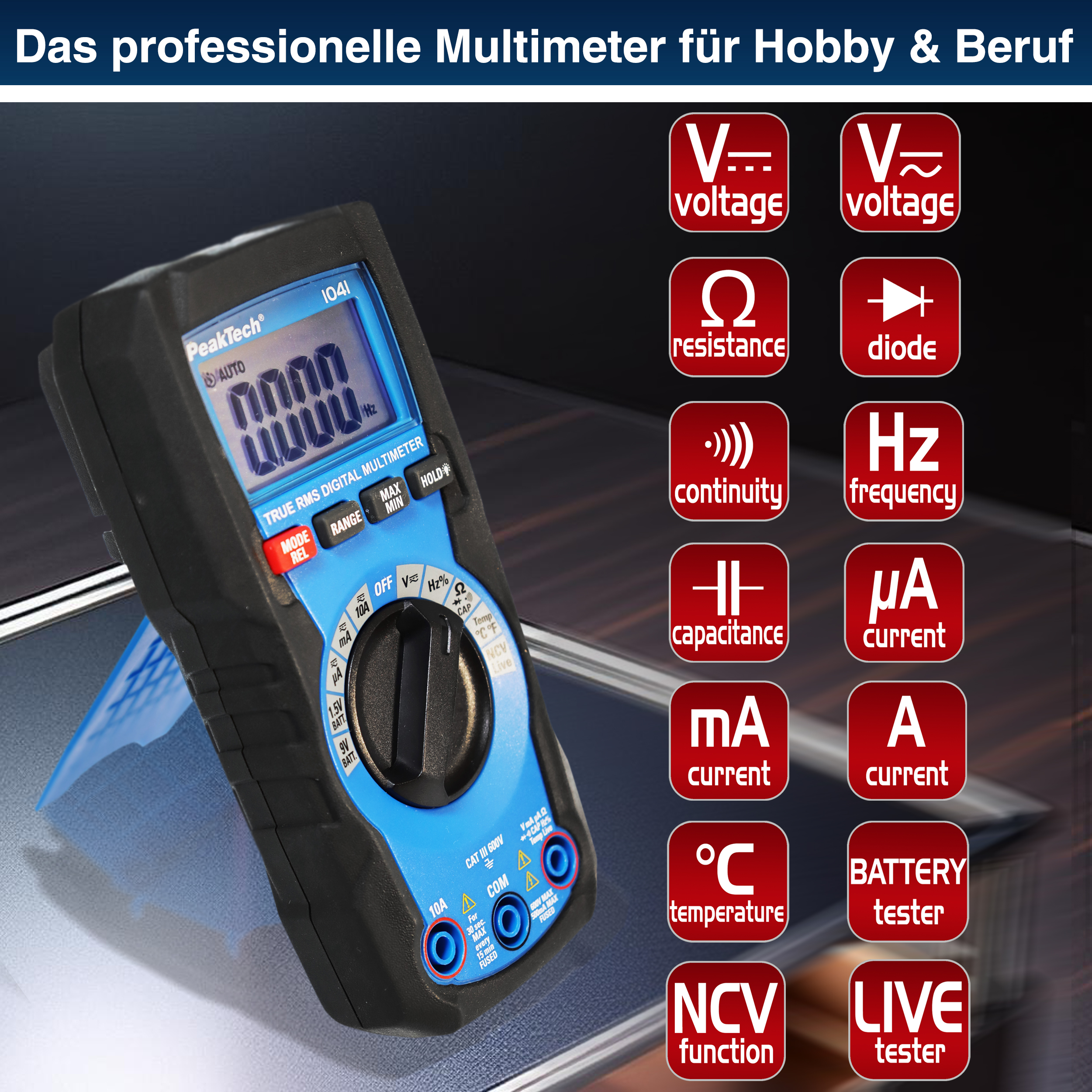

The new PeakTech 1041 is a compact TrueRMS multimeter in a sturdy housing for use in the electrical craftsmanship. Despite its small size, this new development offers all important measuring functions, such as direct and alternating voltage measurements up to 600V, direct and alternating current measurements up to 10 A, resistance measurements, continuity tester and diode test as well as a practical battery test function for 9V or 1,5V batteries. In addition, this model offers frequency measurement, capacitance measurement and a non-contact voltage detector. The measuring range is selected automatically with this device, which guarantees particularly easy handling and measured values can be easily read on the illuminated display. Single-pole phase tests can be carried out with the LIVE function. The safety of the user is guaranteed by the overvoltage category III up to 600 V and the double-insulated housing, whereby the batteries and the high-quality ceramic fuses are quickly accessible for a change via the battery compartment on the back of the device.

Basic Accuracy DC:	+/- 0,5%
Battery:	1,5V AAA
Battery Test:	1,5V, 9V
Capacitance max.:	100 mF
Digital counts:	4.000
Display Type:	LCD
NCV:	■
Over voltage category:	CAT III 600 V
Range selection:	Auto
True RMS:	■
V DC max.:	600V
A AC max.:	10A
Hz max.:	10 MHz
OHM max.:	40 MΩ
Temp. max.:	1000 °C
Temp. min.:	-18 °C
mA DC max.:	400mA
mV DC max.:	400 mV
µA DC max.:	4000 µA
V AC max.:	600 V
A DC max.:	10A
mA AC max.:	400 mA
µA AC max.:	4000 µA

True RMS voltage measurements up to 600 V and currents up to 10 A AC / DC
3 3/4 digit LCD display with 4.000 counts
Automatic range selection for easy handling
Minimum, maximum and data hold function
Relative value function and manual range selection at the push of a button
Continuity test and diode test function
Auto-Power-Off and battery display

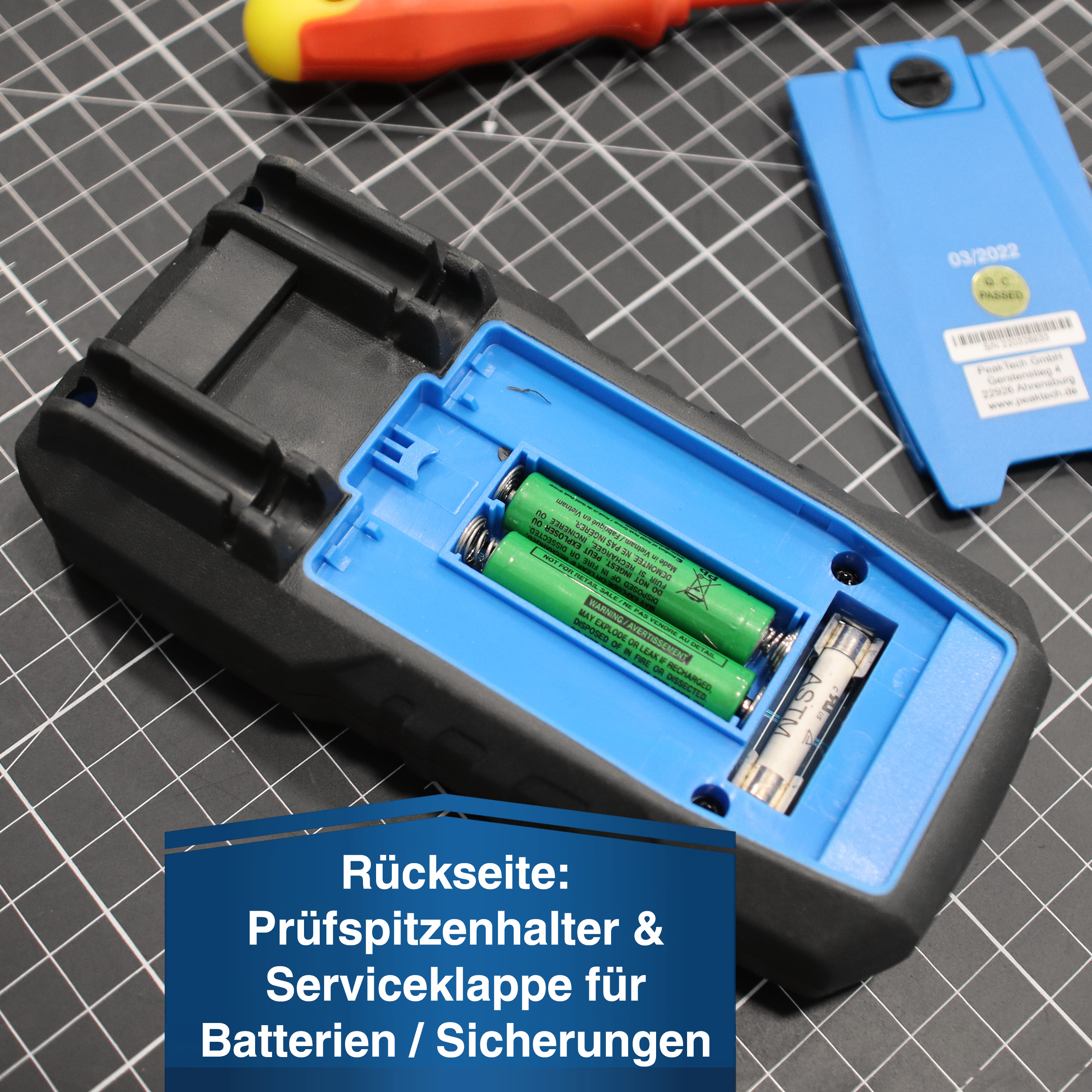

Battery compartment with fuse holder and quick twist lock
Stable housing with double injected rubber coating
Safety: EN 61010-1; CAT III 600 V / CAT IV 300 V

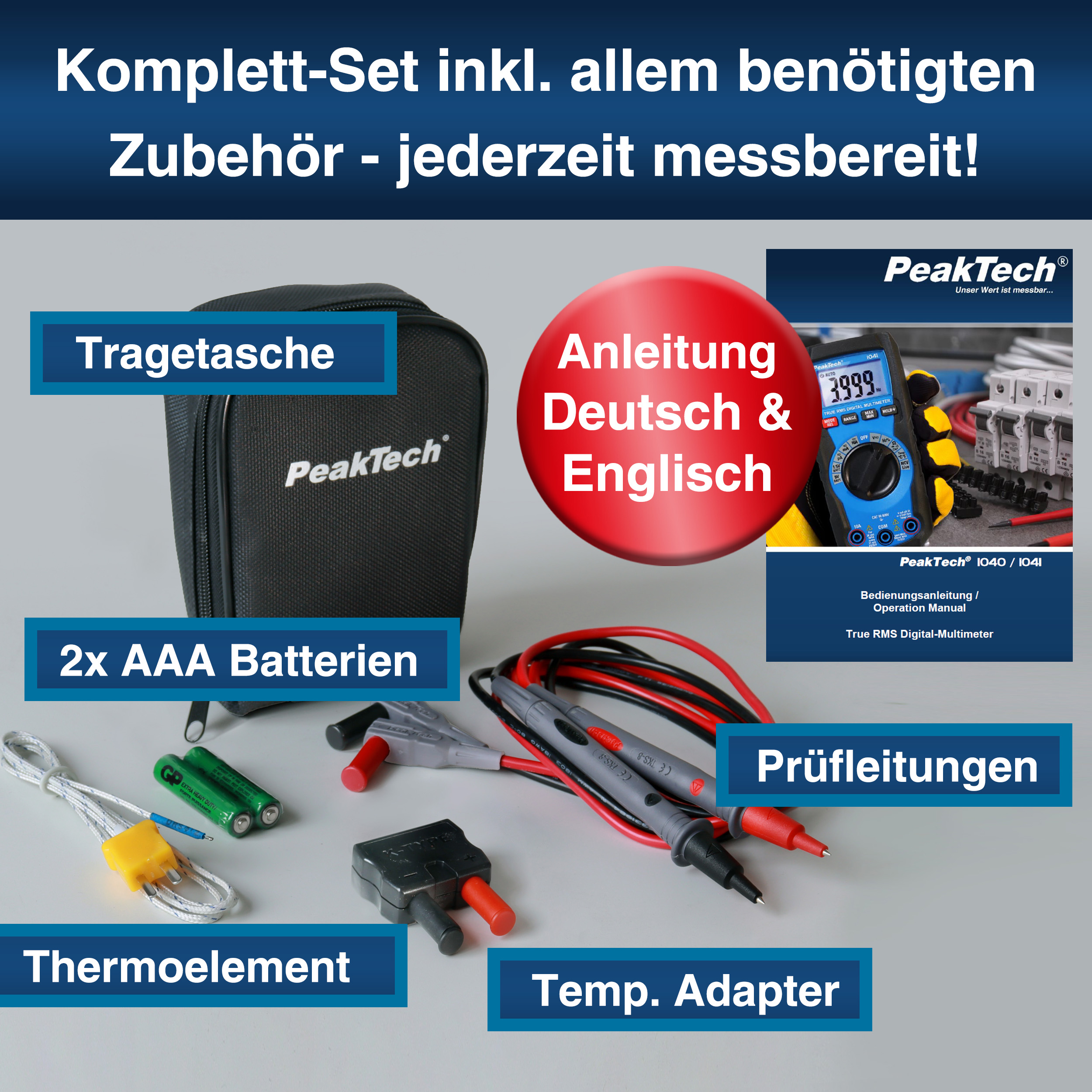

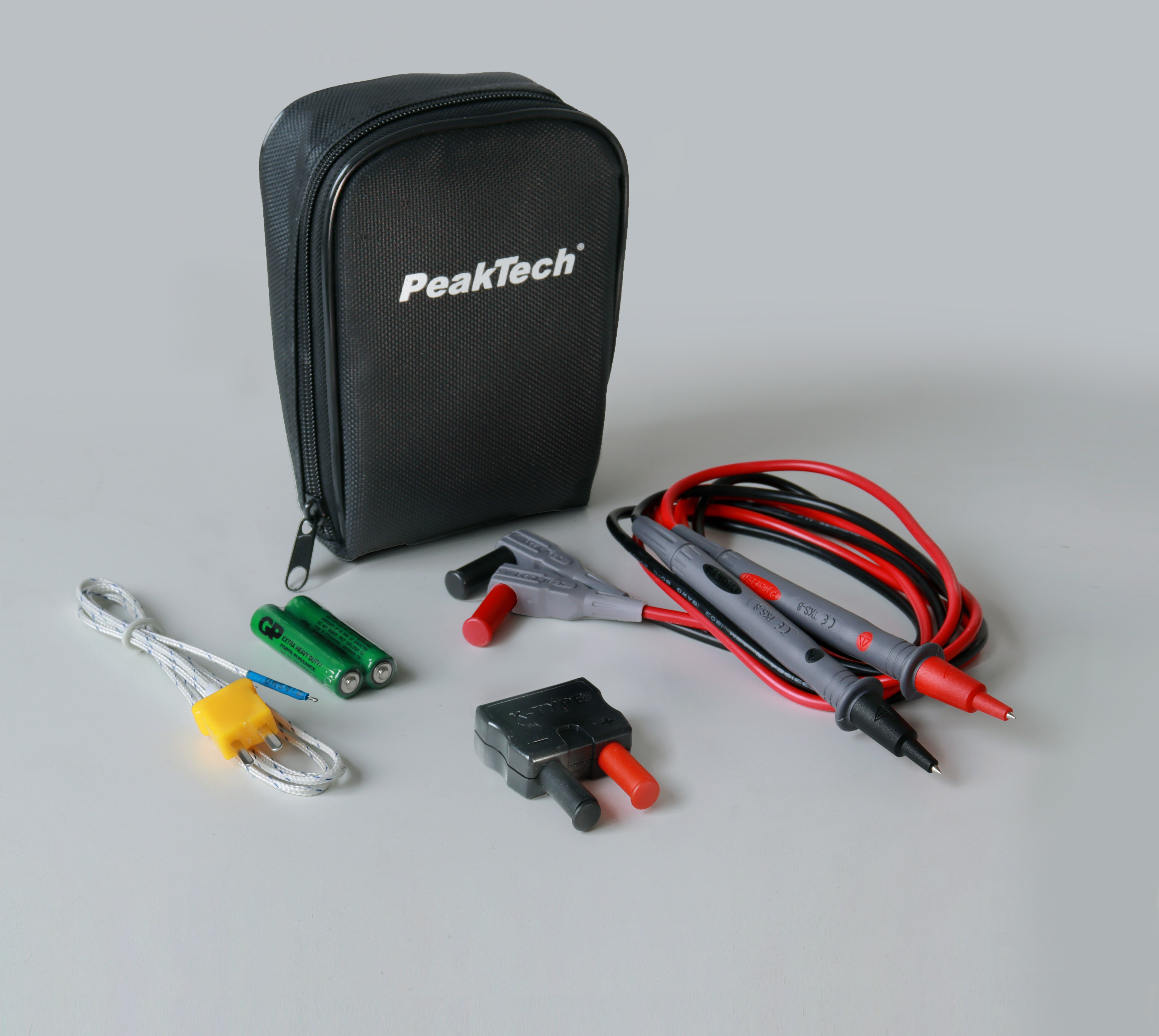

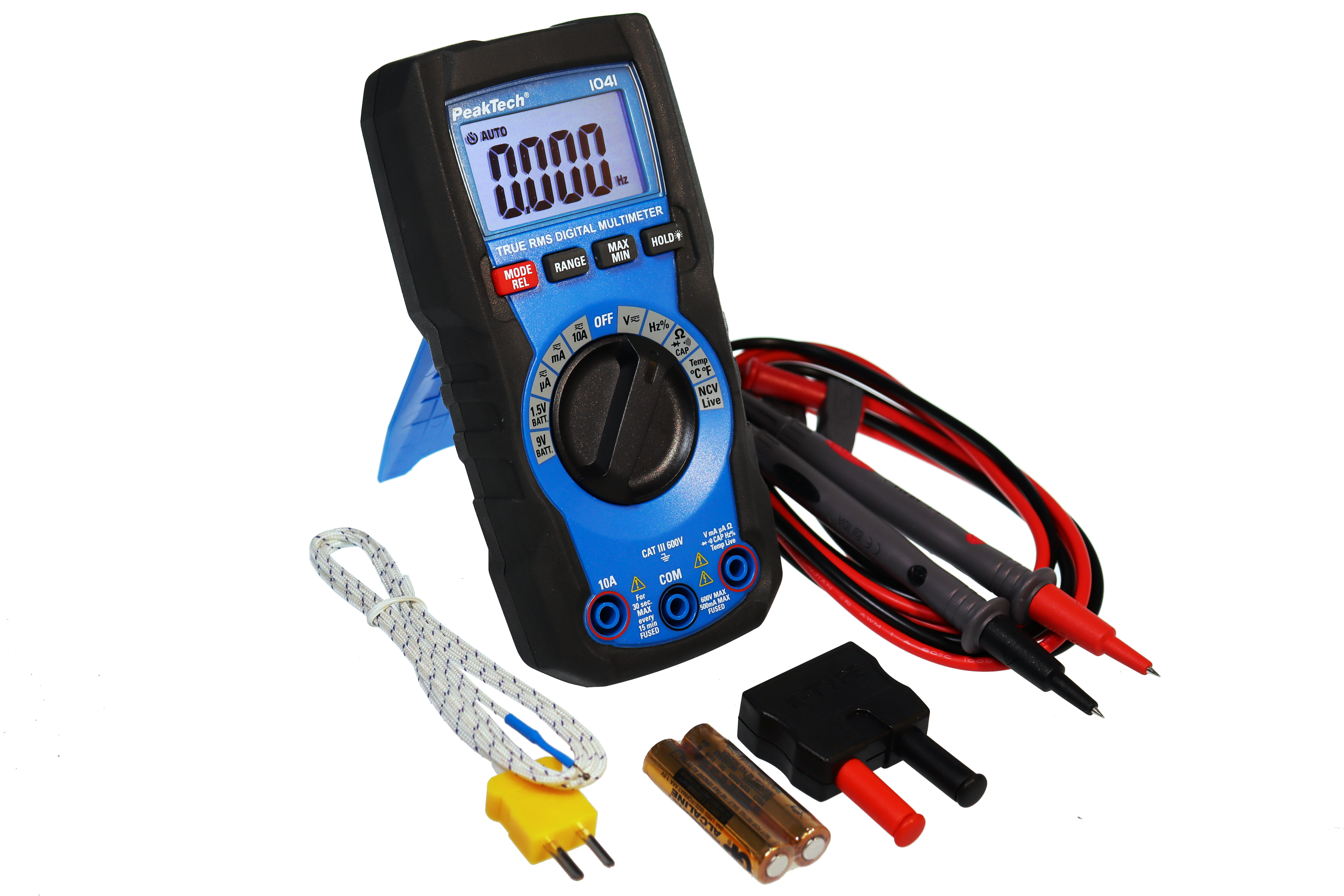

Accessories: Carrying Case, Test Leads, Batteries and User Manual
