«PeakTech® P 1035» 600V AC / DC digital multimeter ~ 2000 digit LCD

€28.90*

Prices excl. VAT plus shipping costs and possibly lower value surcharge

PDF Datasheet

Product number: P 1035

EAN: 4250569400094

Downloads

PeakTech_1035_12-2019_DE-EN-FR-IT-ES.pdf

Product information "«PeakTech® P 1035» 600V AC / DC digital multimeter ~ 2000 digit LCD"

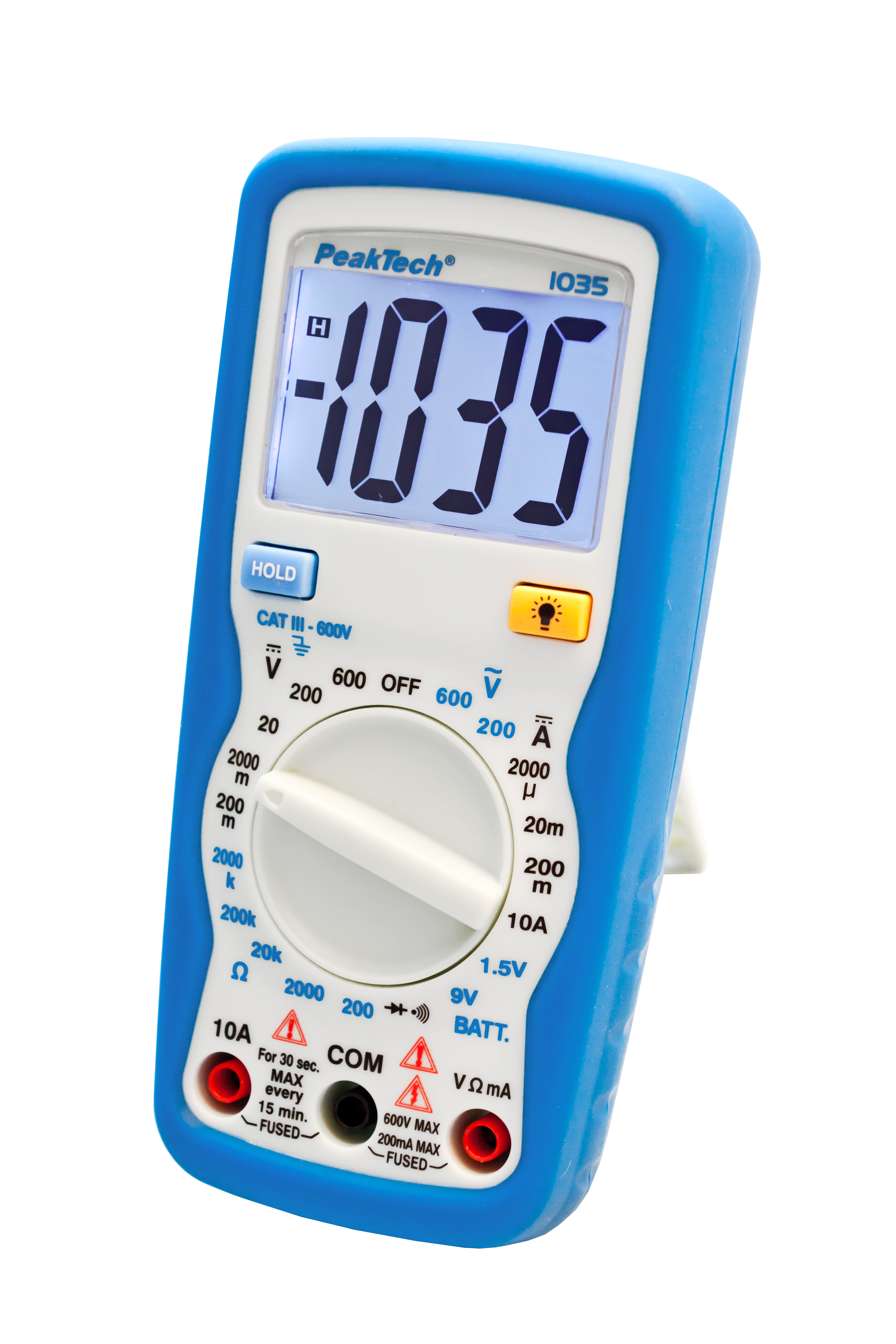

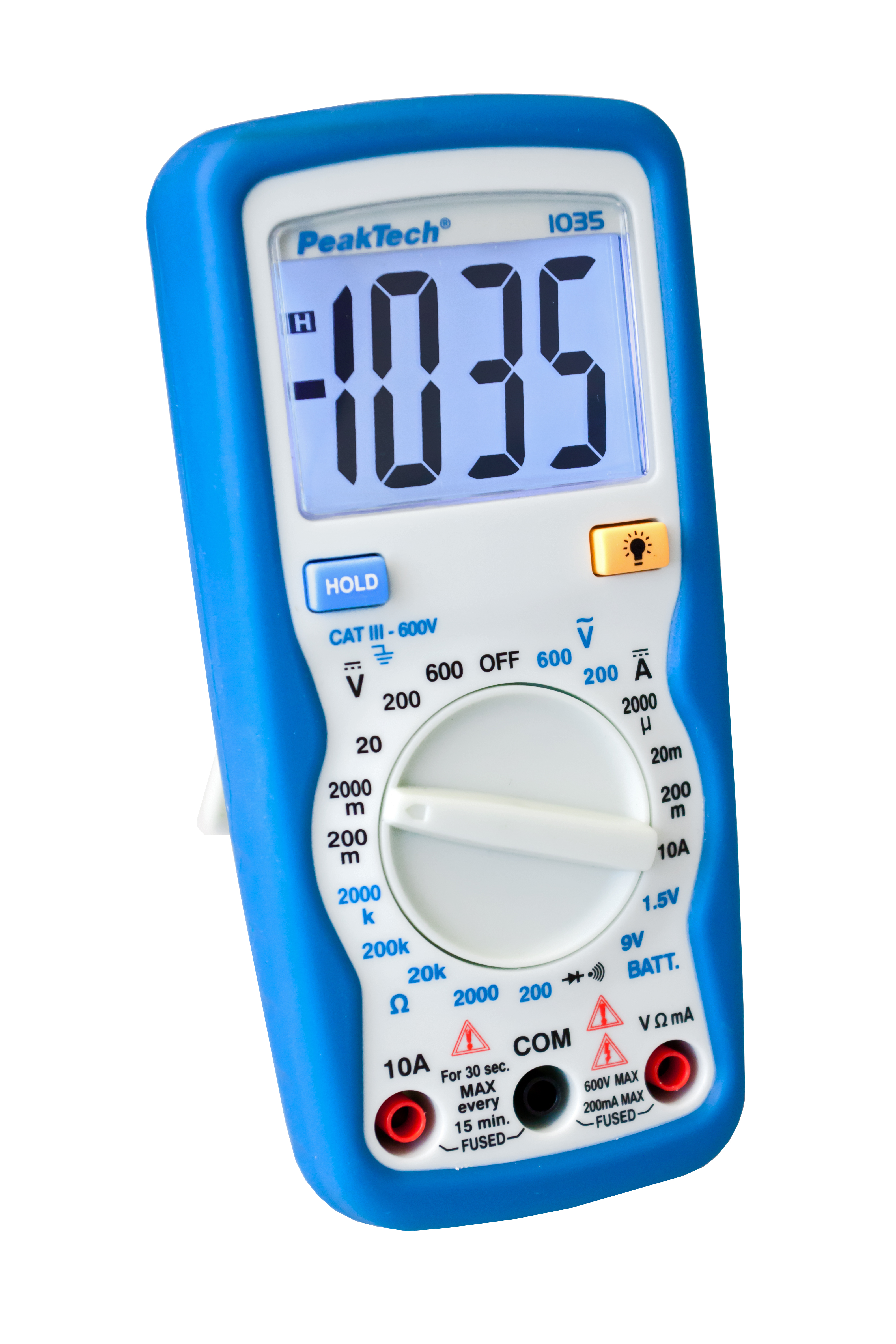

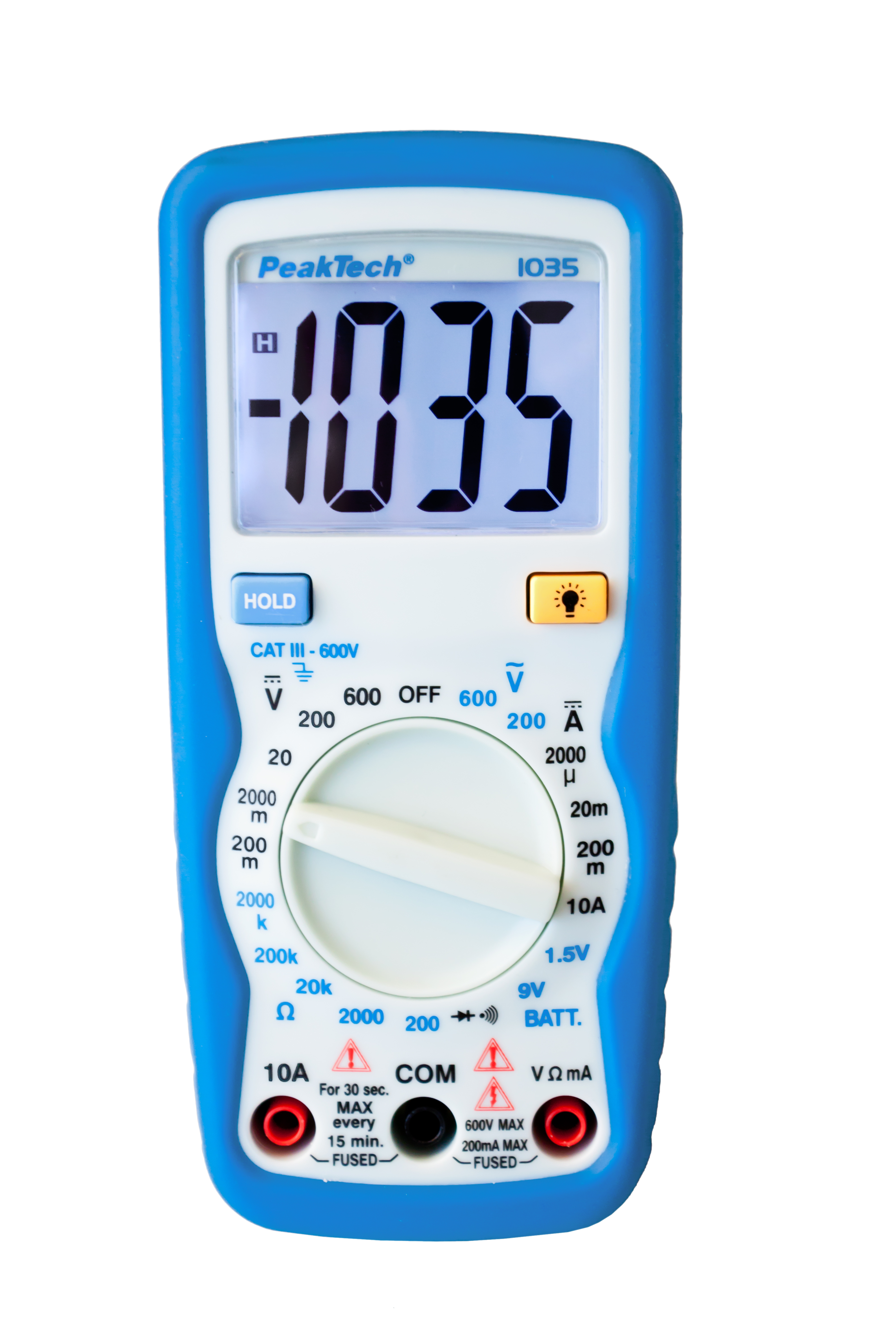

The PeakTech 1035 is a compact handheld multimeter with a 3 1/2 digit LCD display, which is easy to read due to its large segments and the integrated backlight. In addition to the extensive measurement functions for direct and alternating voltage, direct current and resistance, this model has a fast-reacting continuity test with an acoustic signal and a diode test. The measuring range is selected manually, which means that this measuring device displays a measured value particularly quickly. The integrated battery test function enables a more precise test of 1.5V and 9V batteries than a normal voltage test, since a small load resistance leads to a drop in the test voltage when the batteries are empty.

Basic Accuracy DC:	+/- 0,5%
Battery Test:	1,5V, 9V
Digital counts:	2.000
Display Type:	LCD
OHM resolution min.:	0,1 Ω
Over voltage category:	CAT III 600 V
Range selection:	Manual
V AC resolution min.:	100 mV
V DC Resolution min.:	0,1 mV
V DC max.:	600V
OHM max.:	2000 kΩ
mA DC max.:	200mA
mV DC max.:	2000 mV
µA DC max.:	2000 µA
V AC max.:	600 V
A DC max.:	10A

27 mm LCD-display; max. 2000
With backlight
Data hold function
Continuity test with acoustic signal
diode test
Battery test function for 1.5V and 9V batteries
Safety: CAT III 600 V
Accessories: bag, test leads, battery and manual
