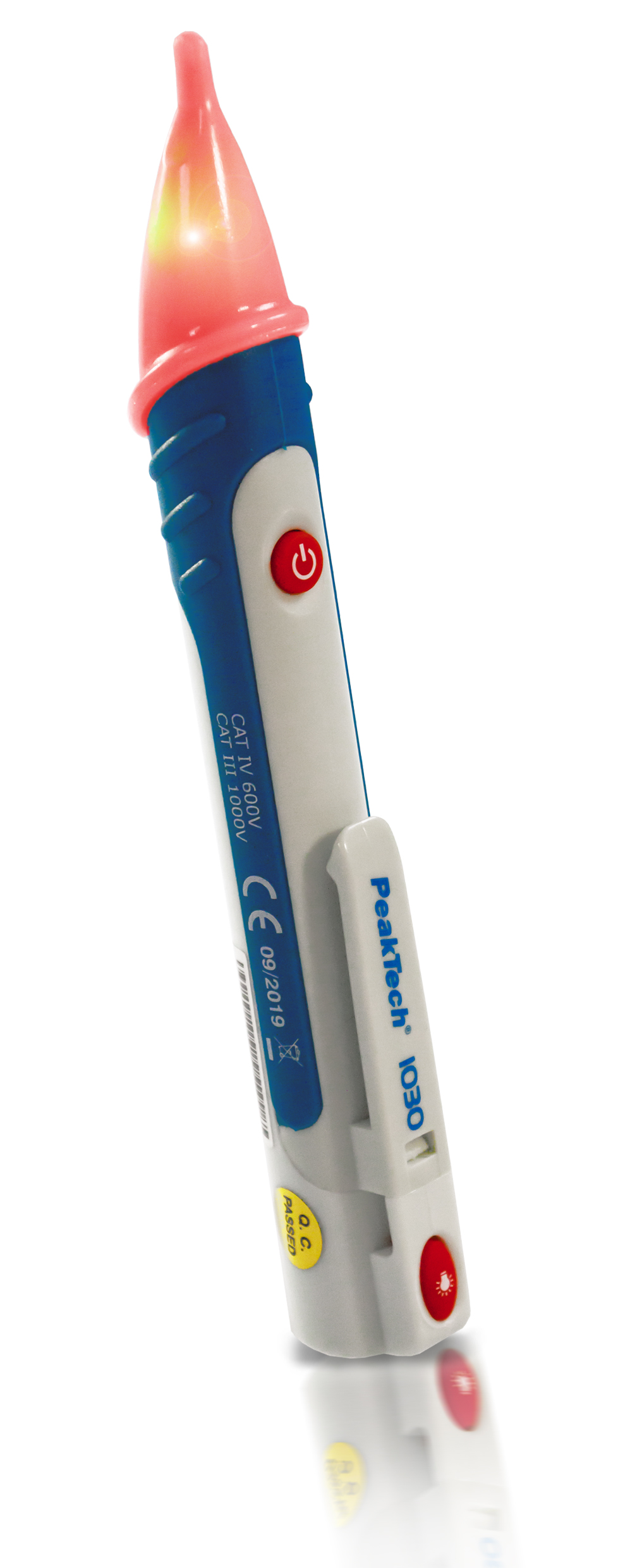

«PeakTech® P 1030» AC Voltage Detector 50 - 1000 V AC, Non-Contact

PDF Datasheet
Product number: P 1030
EAN: 4250569400087
Product information "«PeakTech® P 1030» AC Voltage Detector 50 - 1000 V AC, Non-Contact"
User-friendly tester for non-contact voltage testing from 50 V to 1000 V AC. Suitable for outlets, lamp sockets or against wire insulation testing. If AC voltage is present at the relevant measuring point, this is indicated visually by a flashing red LED and the integrated buzzer sounds. If the measuring point is voltage-free, the test probe lights up permanently green.
LED-lamp:
NCV range: 50 ... 1000 V AC
Over voltage category: CAT III 1000 V
  • With acoustic and visual signal if voltage is found at the measuring point
  • Power ON/OFF switchable
  • Suitable for circuits of 50/60 Hz
  • Rugged double mold case convient size with pocket clip fits in shirt pocket
  • All outer surfaces are non-conductive for safety
  • Build in flashlight with ON/OFF-button
  • Safety: EN 61010-1; CAT III 1000 V
  • Accessories: batteries and manual
