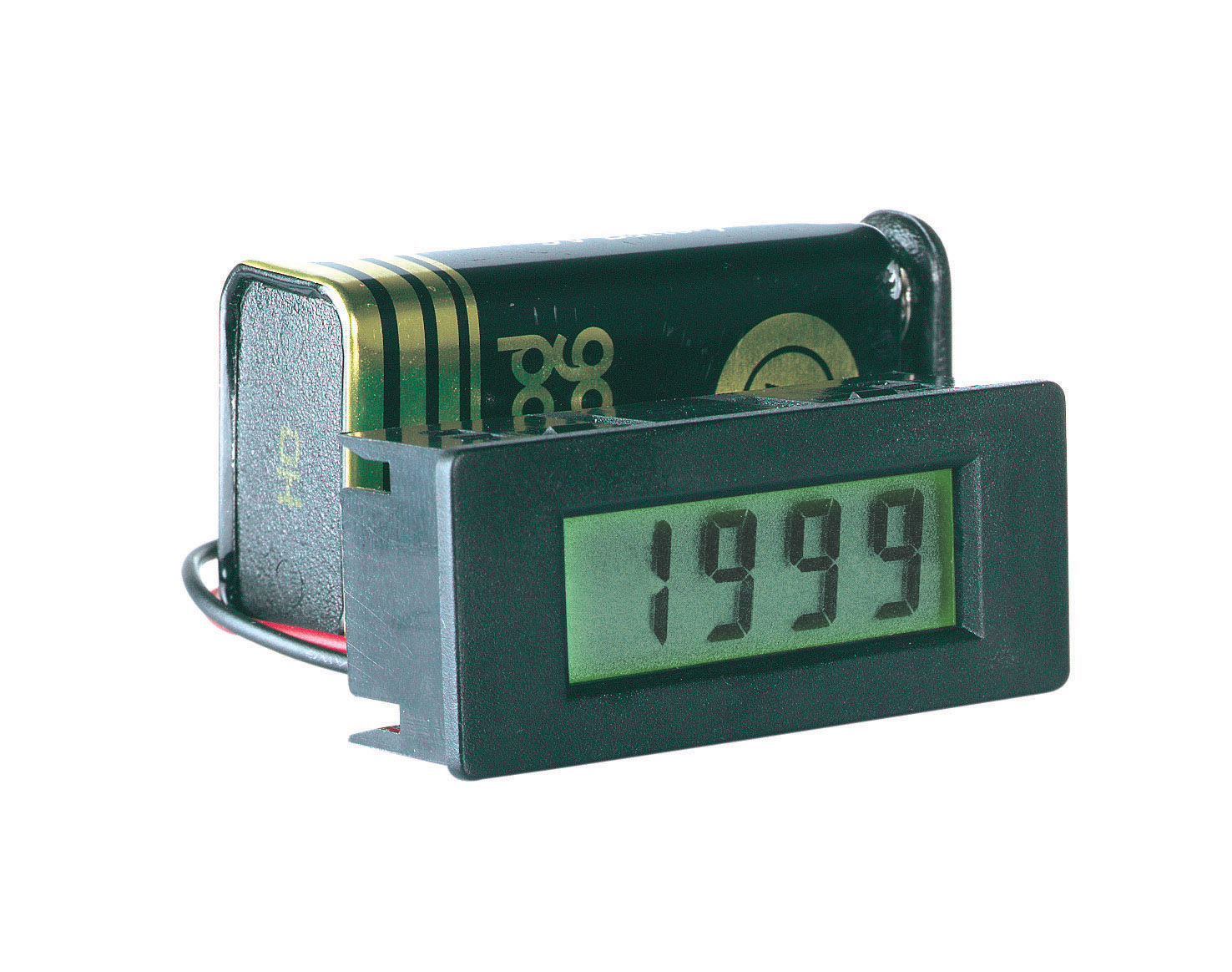

«PeakTech® LDP-340» Volt & ammeter, LCD display 8mm hight of digits

PDF Datasheet
Product number: LDP-340
EAN: 4250569401978
Product information "«PeakTech® LDP-340» Volt & ammeter, LCD display 8mm hight of digits"
Practical built-in module as voltmeter with freely definable measuring range from 0 to 200mV, 2V, 20V, 200V or 500 V. Current measurements from 0 to 200µA, 2mA, 20mA, 200mA and 2A can be carried out via a shunt. With the snap-in frame, this inexpensive module can be integrated into any front panel of your own construction.
Backlight:
Digital counts: 2.000
Display Type: LCD
V DC max.: 500V
mA DC max.: 2000mA
mV DC max.: 200 mV
µA DC max.: 200 µA
  • Applyable as Volt / Ammeter
  • Voltmeter: 0 ... 200mV, 2V, 20V, 200V or 500 V
  • Ammeter: 0 ... 200µA, 2mA, 20mA, 200mA and 2A
  • Freely selectable decimal place via solder joint
  • Self-illuminating green LED segment display
  • Operating voltage via 9V battery
